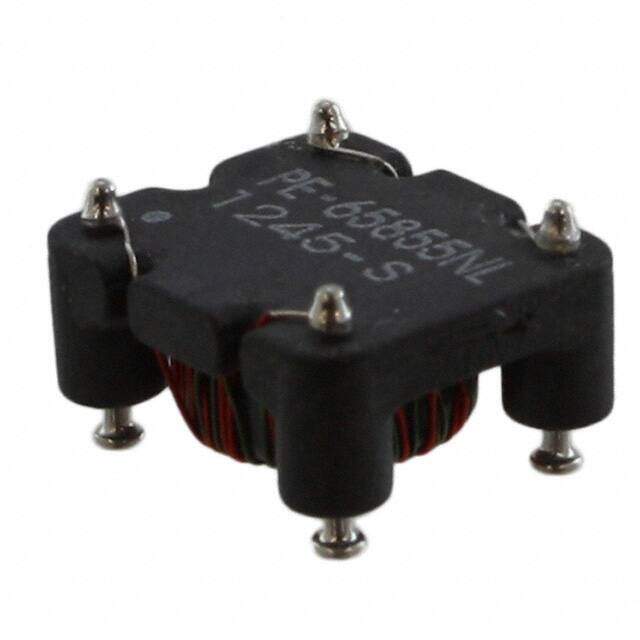

PE-65855NL
RoHS
RoHS compliant
RoHS compliantPackage Horizontal, 4 PC Pad
Category Filters / Common Mode Chokes
Description
Common Mode Chokes Dual 4.7mH 26dB 1Ohm DCR SMD Tube
PDF
/
Buying Options
Total Price: USD $2.38
Unit Price: USD $2.376
≥1 USD $2.376
≥10 USD $1.9844
≥100 USD $1.55342
≥500 USD $1.51932
Inventory: 1022
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Length 8.76mm
Height 6.35mm
Technical
DC Resistance (DCR) (Max) 1Ohm
Number of Lines 2
Filter Type Signal Line
Test Frequency 100MHz
Inductance 4.7 mH
Depth 9.01mm
Number of Functions 2
Shielding Unshielded
Additional Feature COMMON MODE CHOKE
Min Operating Temperature -40°C
Max Operating Temperature 70°C
ECCN Code EAR99
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance 30%
Size / Dimension 0.400Lx0.345W 10.16mmx8.76mm
Published 2006
Packaging Tube
Physical
Number of Pins 4
Package / Case Horizontal, 4 PC Pad
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 11 Weeks
