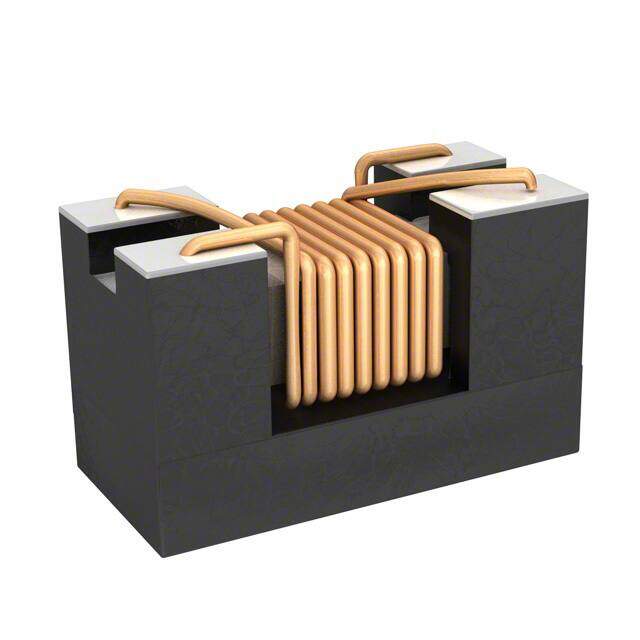

PE-1206CCMC161STS image
Favorite
PE-1206CCMC161STS image
Favorite

PE-1206CCMC161STS

Pulse Electronics Network
RoHS
RoHS RoHS compliant
Package Horizontal, 4 PC Pad
Category Filters / Common Mode Chokes
Description CHOKE COM MODE 160 OHM 50V 1206
PDF
/
Inventory: 6845
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 19 Weeks

Physical

Mount Surface Mount
Mounting Type Surface Mount
Package / Case Horizontal, 4 PC Pad

Technical

Packaging Tape & Reel (TR)
Published 2005
Series ChipChoke? CCMC
Size / Dimension 0.126Lx0.063W 3.20mmx1.60mm
Tolerance 25%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination SMD/SMT
ECCN Code EAR99
HTS Code 8504.50.80.00
Voltage - Rated DC 50V
Number of Functions 1
Depth 1.8mm
Inductance 254 nH
Impedance 160Ohm
Current 340mA
Max DC Current 340mA
Filter Type Signal Line
Number of Lines 2
DC Resistance (DCR) (Max) 400mOhm
Impedance @ Frequency 160Ohm @ 100MHz
Rated Voltage 50V
Insulation Resistance-Min 10MOhm

Dimensions

Height 2.1082mm

Compliance

RoHS Status RoHS Compliant
