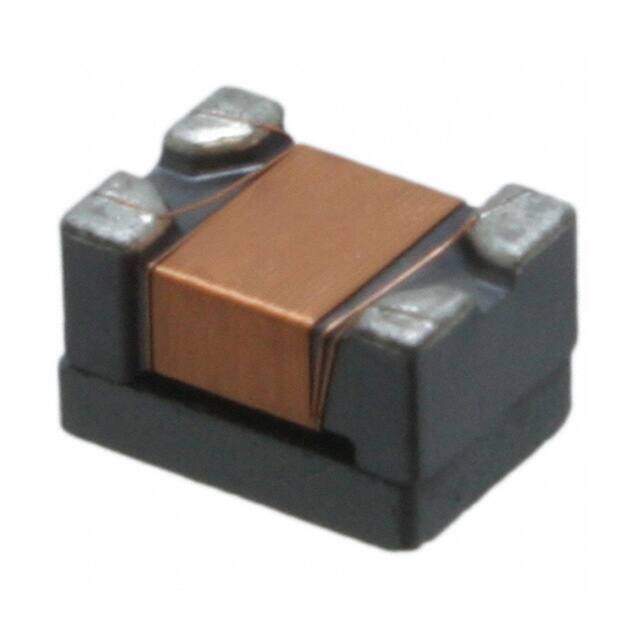

PE-0805CCMC181STS
RoHS
RoHS compliant
RoHS compliantPackage Horizontal, 4 PC Pad
Category Filters / Common Mode Chokes
Description
CHOKE COM MODE 180 OHM 50V 0805
PDF
/
Buying Options
Total Price: USD $0.09
Unit Price: USD $0.09405
≥1 USD $0.09405
≥10 USD $0.0779
≥100 USD $0.07505
≥500 USD $0.07315
≥1000 USD $0.0703
Inventory: 4008
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Height (Max) 0.051 1.30mm
Width 1.1938mm
Length 2.0066mm
Height 1.2954mm
Technical
Impedance @ Frequency 180Ohms @ 100MHz
Current Rating (Max) 330mA
DC Resistance (DCR) (Max) 350mOhm
Number of Lines 2
Filter Type Signal Line
Max DC Current 330mA
Current 330mA
Impedance 180Ohm
Depth 1.4mm
Voltage - Rated DC 50V
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance 25%
Size / Dimension 0.079Lx0.047W 2.00mmx1.20mm
Series ChipChoke? CCMC
Published 2005
Packaging Tape & Reel (TR)
Physical
Package / Case Horizontal, 4 PC Pad
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 9 Weeks
