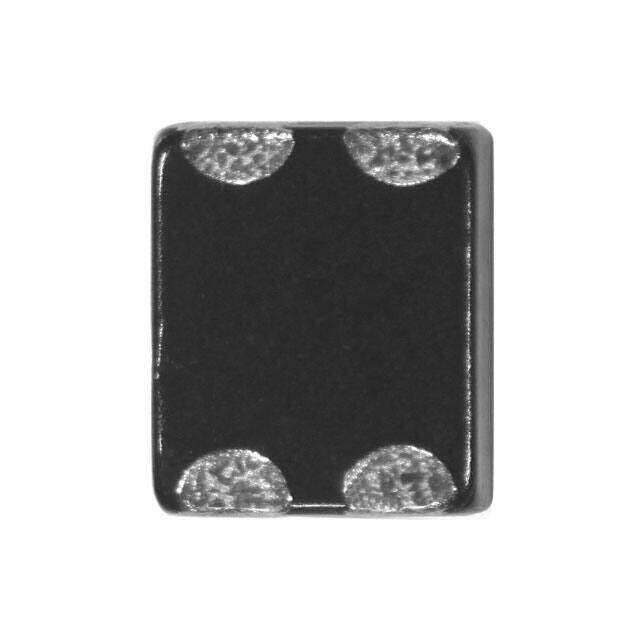

PE-0403MCMC400ST image
Favorite
PE-0403MCMC400ST image
Favorite

PE-0403MCMC400ST

Pulse Electronics Network
RoHS
/
Package 0504 (1210 Metric), 4 Lead
Category Filters / Common Mode Chokes
Description 40 Ohm @ 100MHz Common Mode Choke Surface Mount Signal Line 100mA 2 Lines 2.5 Ohm -40°C ~ 85°C
PDF
/
Inventory: 3976
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 19 Weeks

Physical

Mount Surface Mount
Mounting Type Surface Mount
Package / Case 0504 (1210 Metric), 4 Lead

Technical

Operating Temperature -40°C~85°C
Packaging Tape & Reel (TR)
Published 2016
Series 0403
Size / Dimension 0.049Lx0.039W 1.25mmx1.00mm
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
HTS Code 8504.50.80.00
Voltage - Rated DC 5V
Filter Type Signal Line
Number of Lines 2
DC Resistance (DCR) (Max) 2.5Ohm
Current Rating (Max) 100mA
Impedance @ Frequency 40Ohm @ 100MHz

Dimensions

Height 660.4μm

Compliance

RoHS Status RoHS Compliant
