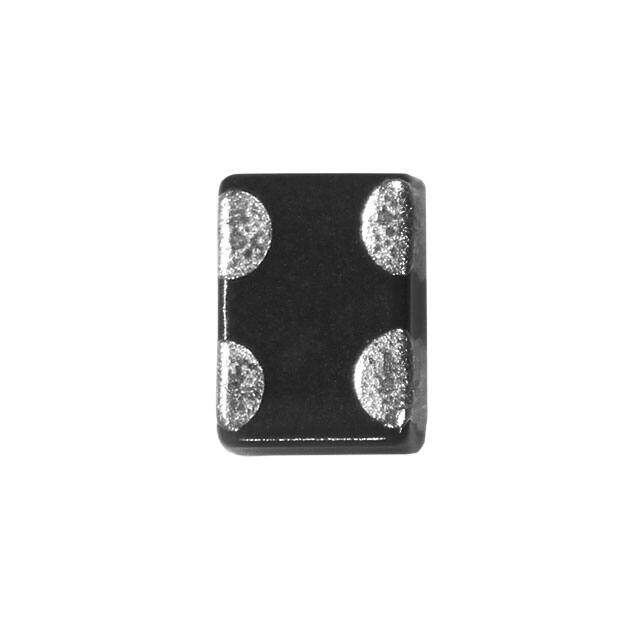

PE-0302MCMC120GT image
Favorite
PE-0302MCMC120GT image
Favorite

PE-0302MCMC120GT

Pulse Electronics Network
RoHS
/
Package 0302 (0806 Metric), 4 Lead
Category Filters / Common Mode Chokes
Description 12 Ohm @ 100MHz Common Mode Choke Surface Mount Signal Line 130mA 2 Lines 2.5 Ohm -40°C ~ 85°C
PDF
/
Inventory: 8799
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 19 Weeks

Physical

Mount Surface Mount
Mounting Type Surface Mount
Package / Case 0302 (0806 Metric), 4 Lead

Technical

Operating Temperature -40°C~85°C
Packaging Tape & Reel (TR)
Published 2016
Series 0302
Size / Dimension 0.033Lx0.026W 0.85mmx0.65mm
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Voltage - Rated DC 5V
Case Code (Metric) 0806
Filter Type Signal Line
Number of Lines 2
DC Resistance (DCR) (Max) 2.5Ohm
Current Rating (Max) 130mA
Impedance @ Frequency 12Ohm @ 100MHz

Dimensions

Height 457.2μm

Compliance

RoHS Status RoHS Compliant
