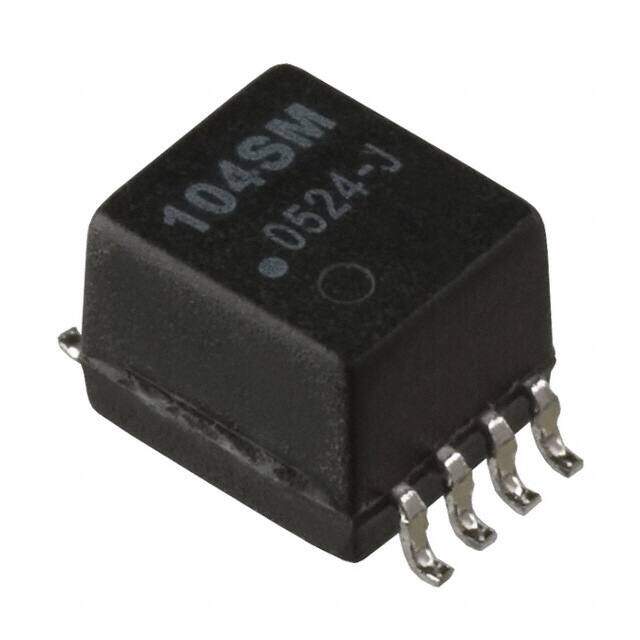

23Z104SM
RoHS
/
Package 8-SOIC (0.265, 6.73mm Width)
Category Filters / Common Mode Chokes
Description
CHOKE COM MODE QUAD 68UH 8-SOIC
PDF
/
Buying Options
Total Price: USD $2.01
Unit Price: USD $2.01495
≥1 USD $2.01495
≥10 USD $1.653
≥100 USD $1.6017
≥500 USD $1.54945
≥1000 USD $1.49815
Inventory: 1341
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status Non-RoHS Compliant
Dimensions
Length 6.73mm
Height 5.588mm
Technical
DC Resistance (DCR) (Max) 200mOhm
Number of Lines 4
Filter Type Signal Line
Test Frequency 100MHz
Inductance 68 μH
Reach Compliance Code unknown
Depth 6.34mm
Number of Functions 4
Shielding Unshielded
Packing Method TUBE
Min Operating Temperature -40°C
Max Operating Temperature 85°C
ECCN Code EAR99
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Obsolete
Tolerance 0.13%
Size / Dimension 0.230Lx0.265W 5.84mmx6.73mm
Published 2007
Packaging Bulk
Physical
Weight 500.000539mg
Package / Case 8-SOIC (0.265, 6.73mm Width)
Mounting Type Surface Mount
Mount Surface Mount
