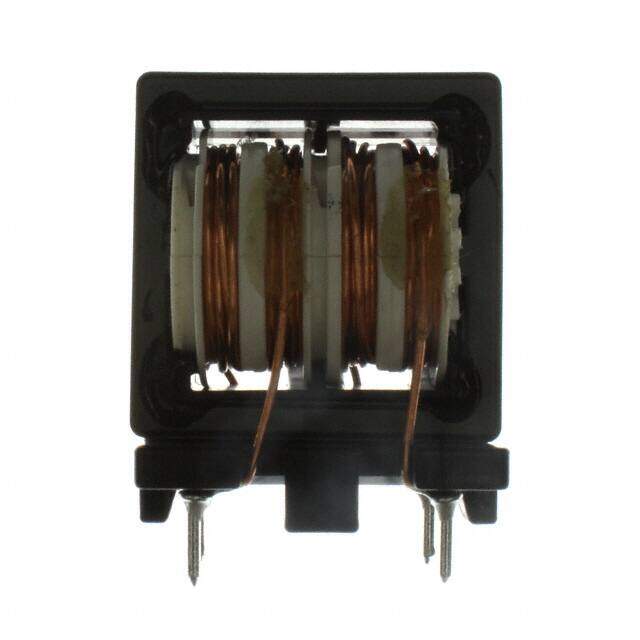

ELF-22V035C
RoHS
/
Package Vertical, 4 PC Pin
Category Filters / Common Mode Chokes
Description
COMMON MODE CHOKE 3.5A 2LN TH
PDF
/
Buying Options
Total Price: USD $5.86
Unit Price: USD $5.864724
≥1 USD $5.864724
≥200 USD $2.340901
≥400 USD $2.262127
≥1000 USD $2.224053
Inventory: 8088
Minimum: 1
-
+
Technical Details
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Vertical, 4 PC Pin
Technical
Packaging Bulk
Published 2005
Series V
Size / Dimension 1.260Lx0.906W 32.00mmx23.00mm
JESD-609 Code e2
Part Status Obsolete
Moisture Sensitivity Level (MSL) 2 (1 Year)
Terminal Finish Tin/Copper (Sn/Cu)
Max Operating Temperature 105°C
Min Operating Temperature -20°C
Additional Feature INDUCTANCE 5.8 MILLI HENRY
Reach Compliance Code unknown
Inductance 5.8 mH
Current 3.5A
Filter Type SINGLE PHASE EMI FILTER
Number of Lines 2
DC Resistance (DCR) (Max) 69mOhm Typ
Dimensions
Height 38.989mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
