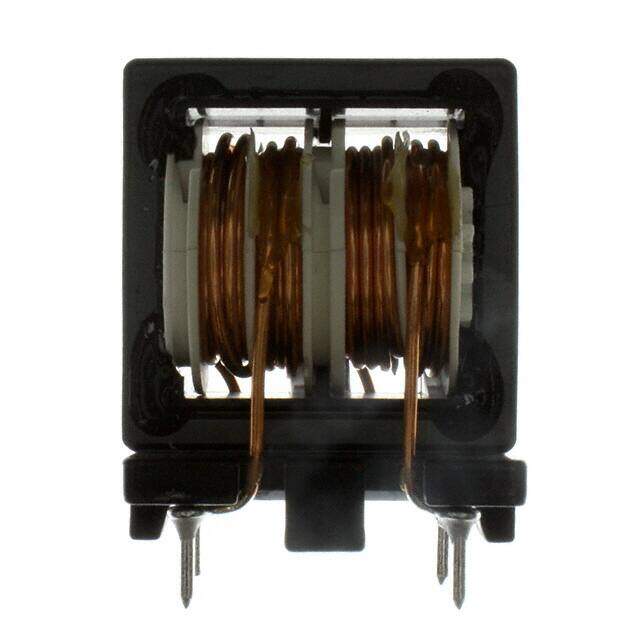

ELF-22V035A
RoHS
/
Package Vertical, 4 PC Pin
Category Filters / Common Mode Chokes
Description
COMMON MODE CHOKE 3.5A 2LN TH
PDF
/
Inventory: 2640
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status Non-RoHS Compliant
Dimensions
Height 38.989mm
Technical
DC Resistance (DCR) (Max) 72mOhm Typ
Number of Lines 2
Filter Type SINGLE PHASE EMI FILTER
Current 3.5A
Inductance 7.3 mH
Reach Compliance Code unknown
Additional Feature INDUCTANCE 7.3 MILLI HENRY
Min Operating Temperature -20°C
Max Operating Temperature 105°C
Terminal Finish Tin/Copper (Sn/Cu)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
JESD-609 Code e2
Size / Dimension 1.260Lx0.906W 32.00mmx23.00mm
Series V
Published 2005
Packaging Bulk
Physical
Package / Case Vertical, 4 PC Pin
Mounting Type Through Hole
Mount Through Hole
