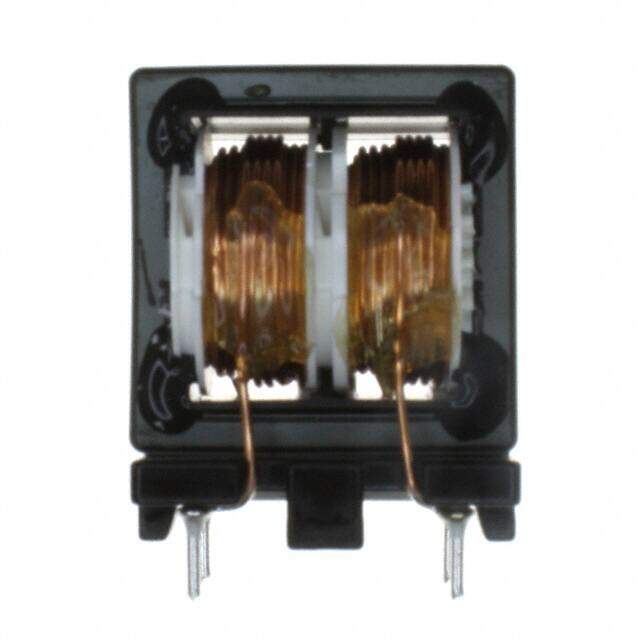

ELF-22V030B
RoHS
/
Package Vertical, 4 PC Pin
Category Filters / Common Mode Chokes
Description
COMMON MODE CHOKE 3A 2LN TH
PDF
/
Buying Options
Total Price: USD $4.09
Unit Price: USD $4.090996
≥1 USD $4.090996
≥200 USD $1.633248
≥400 USD $1.578106
≥1000 USD $1.551848
Inventory: 1700
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status Non-RoHS Compliant
Dimensions
Height 38.989mm
Technical
DC Resistance (DCR) (Max) 102mOhm Typ
Number of Lines 2
Filter Type SINGLE PHASE EMI FILTER
Current 3A
Inductance 13.1 mH
Reach Compliance Code unknown
Additional Feature INDUCTANCE 13.1 MILLI HENRY
Min Operating Temperature -20°C
Max Operating Temperature 105°C
Terminal Finish Tin/Copper (Sn/Cu)
Moisture Sensitivity Level (MSL) 2 (1 Year)
Part Status Obsolete
JESD-609 Code e2
Size / Dimension 1.260Lx0.906W 32.00mmx23.00mm
Series V
Published 2005
Packaging Bulk
Physical
Package / Case Vertical, 4 PC Pin
Mounting Type Through Hole
Mount Through Hole
