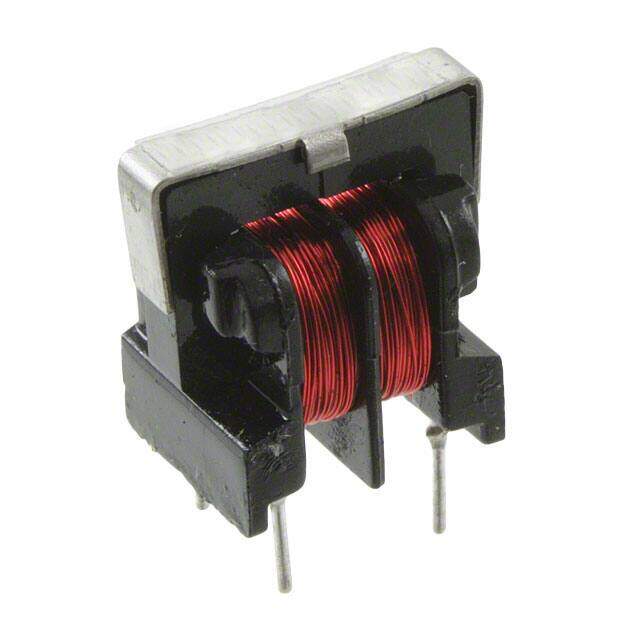

ELF-22V030A
RoHS
/
Package Vertical, 4 PC Pin
Category Filters / Common Mode Chokes
Description
COMMON MODE CHOKE 3A 2LN TH
PDF
/
Inventory: 8179
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Vertical, 4 PC Pin
Technical
Packaging Bulk
Published 2005
Series V
Size / Dimension 1.260Lx0.906W 32.00mmx23.00mm
JESD-609 Code e2
Part Status Obsolete
Moisture Sensitivity Level (MSL) 2 (1 Year)
Terminal Finish Tin/Copper (Sn/Cu)
Max Operating Temperature 105°C
Min Operating Temperature -20°C
Additional Feature INDUCTANCE 9.8 MILLI HENRY
Reach Compliance Code unknown
Inductance 9.8 mH
Current 3A
Filter Type SINGLE PHASE EMI FILTER
Number of Lines 2
DC Resistance (DCR) (Max) 85mOhm Typ
Dimensions
Height 38.989mm
Compliance
RoHS Status Non-RoHS Compliant
Lead Free Lead Free
