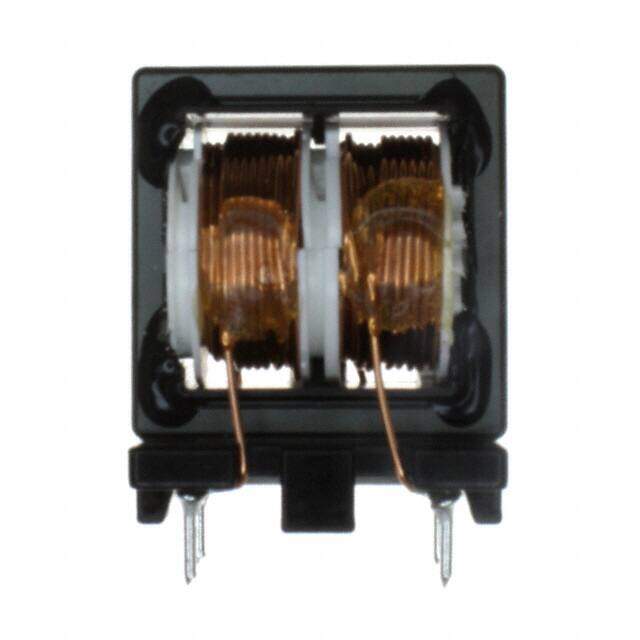

ELF-22V025B
RoHS
/
Package Vertical, 4 PC Pin
Category Filters / Common Mode Chokes
Description
COMMON MODE CHOKE 2.5A 2LN TH
PDF
/
Inventory: 8491
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Height 38.989mm
Technical
DC Resistance (DCR) (Max) 138mOhm Typ
Number of Lines 2
Filter Type SINGLE PHASE EMI FILTER
Current 2.5A
Inductance 18 mH
Reach Compliance Code unknown
Additional Feature INDUCTANCE 18 MILLI HENRY
Min Operating Temperature -20°C
Max Operating Temperature 105°C
Terminal Finish Tin/Copper (Sn/Cu)
Moisture Sensitivity Level (MSL) 2 (1 Year)
Part Status Obsolete
JESD-609 Code e2
Size / Dimension 1.260Lx0.906W 32.00mmx23.00mm
Series V
Published 2005
Packaging Bulk
Physical
Package / Case Vertical, 4 PC Pin
Mounting Type Through Hole
Mount Through Hole
