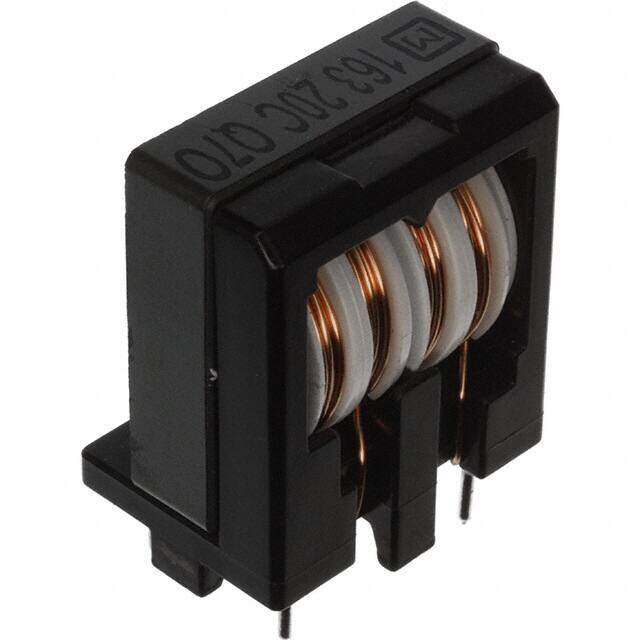

ELF-22V020C image
Favorite
ELF-22V020C image
Favorite
RoHS
/
Package Vertical, 4 PC Pin
Category Filters / Common Mode Chokes
Description COMMON MODE CHOKE 2A 2LN TH
PDF
/
Inventory: 3949
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Lead Free Lead Free
RoHS Status Non-RoHS Compliant

Dimensions

Height 38.989mm

Technical

DC Resistance (DCR) (Max) 170mOhm Typ
Number of Lines 2
Filter Type SINGLE PHASE EMI FILTER
Max DC Current 2A
Current 2A
Inductance 16 mH
Reach Compliance Code unknown
Additional Feature INDUCTANCE 16 MILLI HENRY
Min Operating Temperature -20°C
Max Operating Temperature 105°C
Terminal Finish Tin/Copper (Sn/Cu)
Termination Radial
Moisture Sensitivity Level (MSL) 2 (1 Year)
Part Status Obsolete
JESD-609 Code e2
Tolerance 20%
Size / Dimension 1.260Lx0.906W 32.00mmx23.00mm
Series V
Published 2005
Packaging Bulk

Physical

Package / Case Vertical, 4 PC Pin
Mounting Type Through Hole
Mount Through Hole
