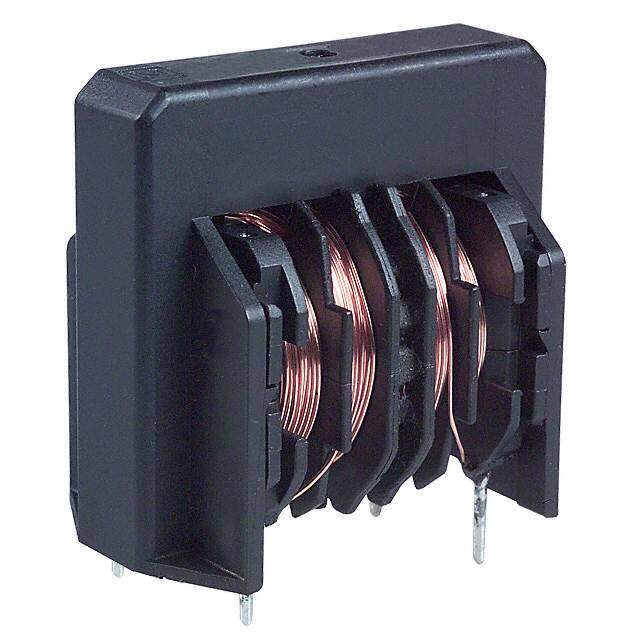

ELF-18N016A image
Favorite
ELF-18N016A image
Favorite
RoHS
/
Package Vertical, 4 PC Pin
Category Filters / Common Mode Chokes
Description COMMON MODE CHOKE 1.6A 2LN TH
PDF
/
Inventory: 1421
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status Non-RoHS Compliant
Radiation Hardening No

Dimensions

Width 18mm
Height 27.5082mm

Technical

DC Resistance (DCR) (Max) 185mOhm Typ
Number of Lines 2
Max DC Current 1.6A
Current 1.6A
Inductance 6 mH
Min Operating Temperature -20°C
Max Operating Temperature 115°C
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
JESD-609 Code e2
Size / Dimension 0.709Lx1.083W 18.00mmx27.50mm
Series N
Published 2006
Packaging Bulk

Physical

Package / Case Vertical, 4 PC Pin
Mounting Type Through Hole
Mount Through Hole
