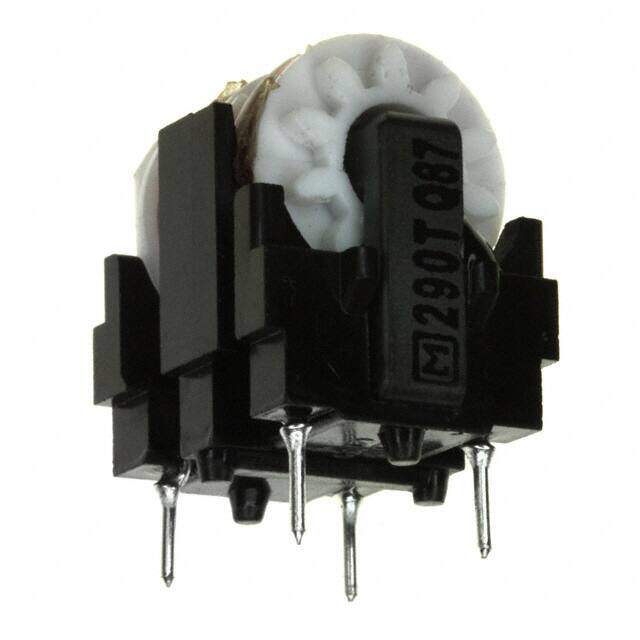

ELF-18D290T image
Favorite
ELF-18D290T image
Favorite
RoHS
/
Package Vertical, 4 PC Pin
Category Filters / Common Mode Chokes
Description COMMON MODE CHOKE 1.3A 2LN TH
PDF
/
Inventory: 9372
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Physical

Mount Through Hole
Mounting Type Through Hole
Package / Case Vertical, 4 PC Pin

Technical

Packaging Bulk
Published 2006
Series V
Size / Dimension 0.827Lx0.630W 21.00mmx16.00mm
JESD-609 Code e2
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Terminal Finish Tin/Copper (Sn/Cu)
Max Operating Temperature 105°C
Min Operating Temperature -20°C
Reach Compliance Code unknown
Inductance 2.2 mH
Current 1.3A
Filter Type SINGLE PHASE EMI FILTER
Number of Lines 2
DC Resistance (DCR) (Max) 186mOhm Typ

Dimensions

Height 22.5044mm
Width 16mm

Compliance

RoHS Status RoHS Compliant
