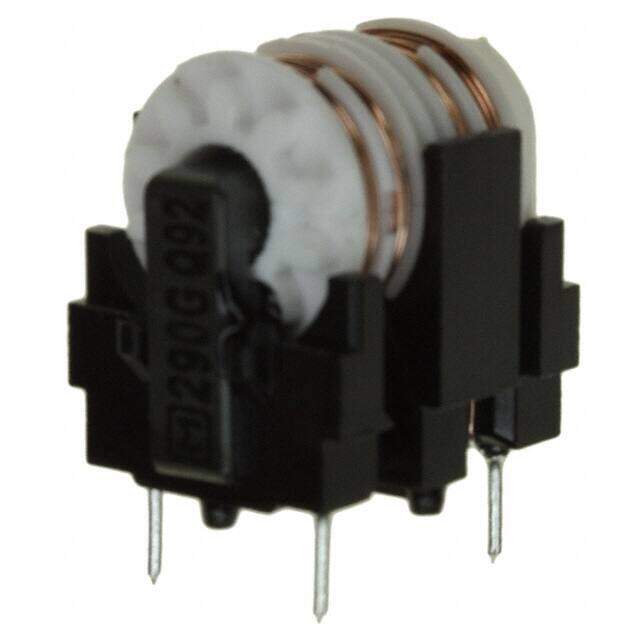

ELF-18D290G
RoHS
/
Package Vertical, 4 PC Pin
Category Filters / Common Mode Chokes
Description
COMMON MODE CHOKE 600MA 2LN TH
PDF
/
Inventory: 7586
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status Non-RoHS Compliant
Dimensions
Width 16mm
Height 22.5044mm
Technical
DC Resistance (DCR) (Max) 782mOhm Typ
Number of Lines 2
DC Current 600mA
Filter Type SINGLE PHASE EMI FILTER
Current 600mA
Inductance 10 mH
Reach Compliance Code unknown
Depth 17mm
Additional Feature INDUCTANCE 10 MILLI HENRY
Min Operating Temperature -20°C
Max Operating Temperature 105°C
Terminal Finish Tin/Copper (Sn/Cu)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
JESD-609 Code e2
Size / Dimension 0.827Lx0.630W 21.00mmx16.00mm
Series V
Published 2006
Packaging Bulk
Physical
Package / Case Vertical, 4 PC Pin
Mounting Type Through Hole
Mount Through Hole
