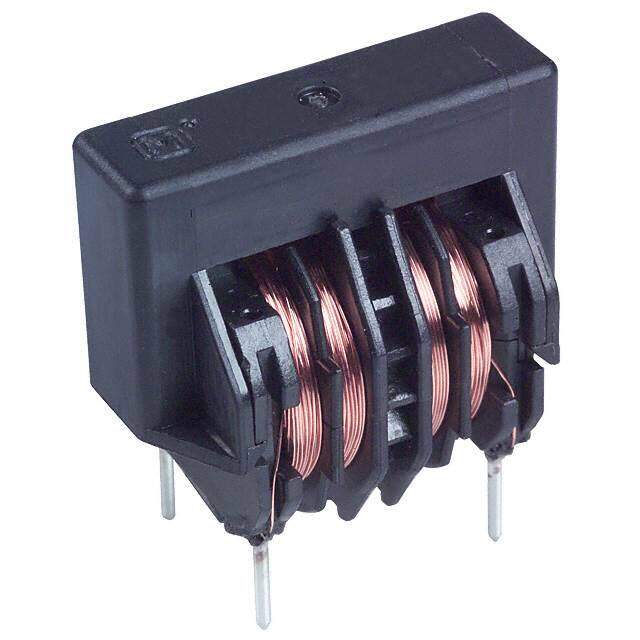

ELF-17N030A
RoHS
/
Package Vertical, 4 PC Pin
Category Filters / Common Mode Chokes
Description
COMMON MODE CHOKE 3A 2LN TH
PDF
/
Inventory: 3430
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status Non-RoHS Compliant
Radiation Hardening No
Dimensions
Width 15mm
Height 22.5044mm
Technical
DC Resistance (DCR) (Max) 52mOhm Typ
Number of Lines 2
Current 3A
Inductance 800 μH
Min Operating Temperature -20°C
Max Operating Temperature 115°C
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
JESD-609 Code e2
Size / Dimension 0.591Lx0.894W 15.00mmx22.70mm
Series N
Published 2006
Packaging Bulk
Physical
Package / Case Vertical, 4 PC Pin
Mounting Type Through Hole
Mount Through Hole
