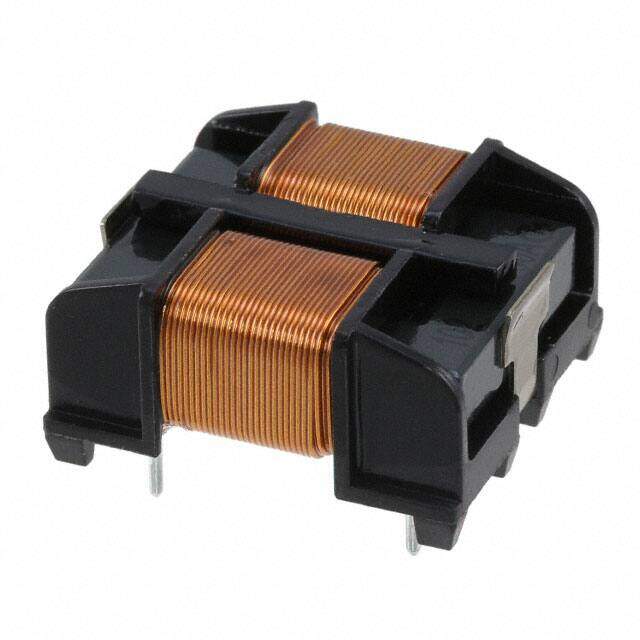

PLY17BN7820R7A2B
RoHS
/
Package Horizontal, 4 PC Pin
Category Filters / Common Mode Chokes
Description
Common Mode Chokes Dual 7.8mH 700mA Thru-Hole Box
PDF
/
Inventory: 9142
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Lifecycle Status DISCONTINUED (Last Updated: 1 month ago)
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Horizontal, 4 PC Pin
Technical
Operating Temperature -25°C~60°C
Packaging Bulk
Series PLY17
Size / Dimension 0.965Lx0.886W 24.50mmx22.50mm
JESD-609 Code e2
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Radial
Terminal Finish Tin/Copper (Sn/Cu)
Packing Method BOX
Depth 23mm
Voltage - Rated AC 300V
Inductance 7.8 mH
Current 700mA
Max DC Current 700mA
Filter Type Power Line
DC Current 700mA
Number of Lines 2
DC Resistance (DCR) (Max) 950Ohm
Rated Voltage 300V
Dimensions
Height 13.0048mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
