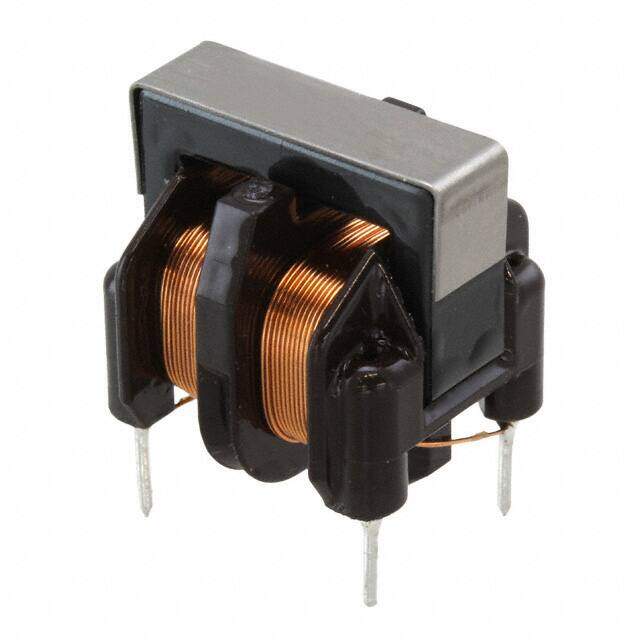

PLY10AS7012R0D2B
RoHS
/
Package Vertical, 4 PC Pin
Category Filters / Common Mode Chokes
Description
Common Mode Filters / Chokes 0.7mH 2A 300volt
PDF
/
Inventory: 7300
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Lifecycle Status DISCONTINUED (Last Updated: 1 month ago)
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Vertical, 4 PC Pin
Technical
Operating Temperature -25°C~60°C
Packaging Bulk
Series PLY10
Size / Dimension 0.709Lx0.630W 18.00mmx16.00mm
JESD-609 Code e2
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Radial
Terminal Finish Tin/Copper (Sn/Cu)
Packing Method BOX
Voltage - Rated AC 300V
Physical Dimension L18.0XB16.0XH17.5 (mm)/L0.709XB0.63XH0.689 (inch)
Inductance 700 μH
Current 2A
Max DC Current 2A
Filter Type Power Line
Number of Lines 2
DC Resistance (DCR) (Max) 180mOhm
Rated Voltage 300V
Dimensions
Height 17.5006mm
Length 18mm
Width 16mm
Compliance
RoHS Status RoHS Compliant
