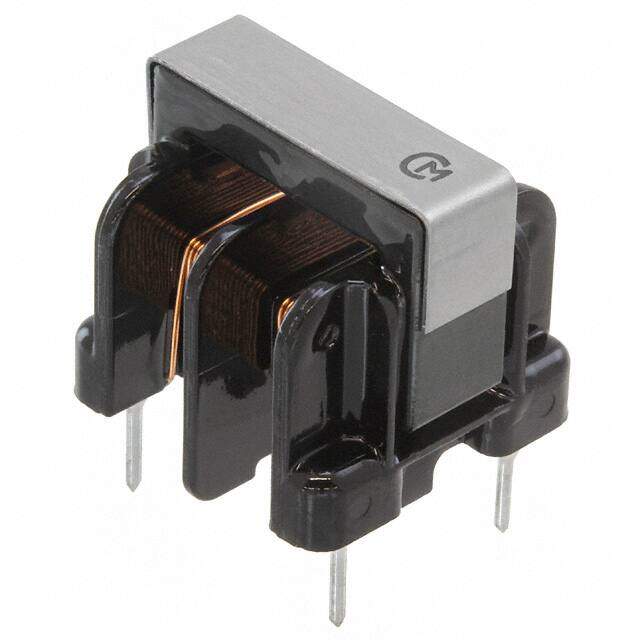

PLH10AS2211R5P2B
RoHS
/
Package Vertical, 4 PC Pin
Category Filters / Common Mode Chokes
Description
Common Mode Filters / Chokes COMMON MODE CHOKE
PDF
/
Buying Options
Total Price: USD $1.68
Unit Price: USD $1.680512
≥1 USD $1.680512
≥200 USD $0.670892
≥500 USD $0.648573
≥1260 USD $0.638069
Inventory: 9507
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Length 18mm
Height 17.5mm
Technical
Insulation Resistance-Min 100MOhm
Number of Lines 2
DC Current 1.5A
Filter Type Power Line
Lead/Base Style Pin
Max DC Current 1.5A
Current 1.5A
Inductance 220 μH
Operating Frequency 50Hz Hz
Physical Dimension L18.0XB16.0XH17.5 (mm)/L0.709XB0.63XH0.689 (inch)
Lead Pitch 13mm
Approval Agency EN
Military Standard Not
Depth 16mm
Shielding Unshielded
Packing Method BOX
Voltage - Rated DC 300V
Terminal Finish Tin/Copper (Sn/Cu)
Termination Radial
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
JESD-609 Code e2
Size / Dimension 0.709Lx0.630W 18.00mmx16.00mm
Series PLH10
Packaging Bulk
Operating Temperature -25°C~60°C
Physical
Package / Case Vertical, 4 PC Pin
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Lifecycle Status DISCONTINUED (Last Updated: 1 month ago)
