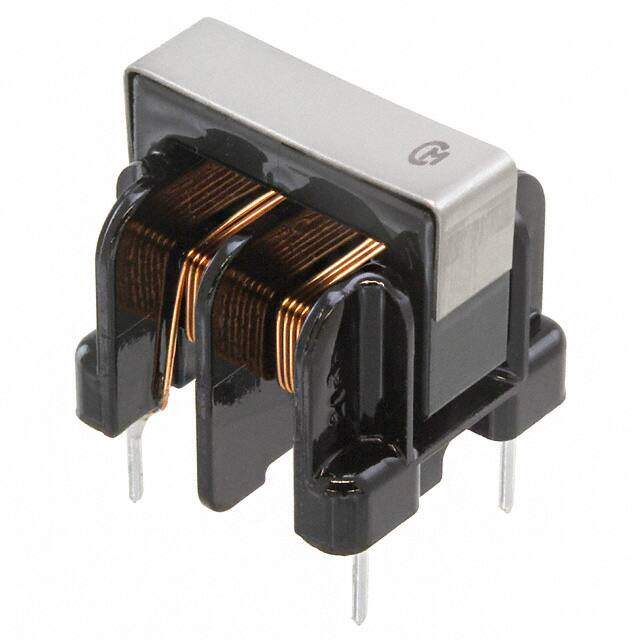

PLH10AS1612R1P2B
RoHS
/
Package Vertical, 4 PC Pin
Category Filters / Common Mode Chokes
Description
Common Mode Filters / Chokes 160uH 2.1A 250volt
PDF
/
Inventory: 7294
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Length 18mm
Height 17.5mm
Technical
Insulation Resistance-Min 100MOhm
DC Resistance (DCR) (Max) 80mOhm
Number of Lines 2
DC Current 2.1A
Filter Type Power Line
Lead/Base Style Pin
Max DC Current 2.1A
Current 2.1A
Inductance 160 μH
Operating Frequency 50Hz Hz
Physical Dimension L18.0XB16.0XH17.5 (mm)/L0.709XB0.63XH0.689 (inch)
Approval Agency EN
Military Standard Not
Depth 16mm
Packing Method BOX
Voltage - Rated DC 300V
Additional Feature L 160 MICRO HENRY; HIGH-FREQUENCY TYPE; CORE VERTICAL TYPE STRUCTURE; ALIGNED WINDING TYPE
Terminal Finish Tin/Copper (Sn/Cu)
Termination Radial
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
JESD-609 Code e2
Size / Dimension 0.709Lx0.630W 18.00mmx16.00mm
Series PLH10
Packaging Bulk
Operating Temperature -25°C~60°C
Physical
Package / Case Vertical, 4 PC Pin
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Lifecycle Status DISCONTINUED (Last Updated: 3 weeks ago)
