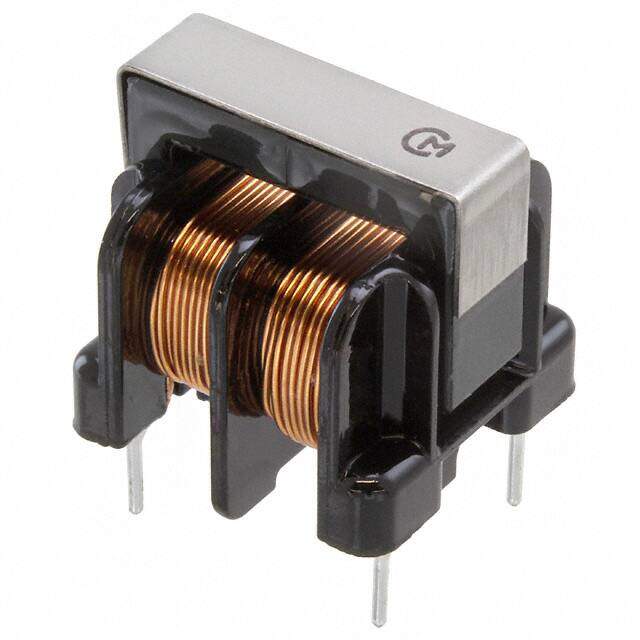

PLA10AS5521R0R2B
RoHS
/
Package Vertical, 4 PC Pin
Category Filters / Common Mode Chokes
Description
Common Mode Filters / Chokes 5.5mH 1A 250volt
PDF
/
Buying Options
Total Price: USD $16.07
Unit Price: USD $16.07115
≥1 USD $16.07115
≥10 USD $13.186
≥100 USD $12.77465
≥500 USD $12.36235
≥1000 USD $11.95005
Inventory: 7801
Minimum: 1
-
+
Technical Details
Supply Chain
Lifecycle Status DISCONTINUED (Last Updated: 1 month ago)
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Vertical, 4 PC Pin
Technical
Operating Temperature -25°C~60°C
Packaging Bulk
Series PLA10
Size / Dimension 0.709Lx0.630W 18.00mmx16.00mm
JESD-609 Code e2
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Radial
Terminal Finish Tin/Copper (Sn/Cu)
Voltage - Rated 300V
Additional Feature INDUCTANCE 5.5 MILLI HENRY; CORE VERTICAL TYPE STRUCTURE
Voltage - Rated DC 250V
Packing Method BOX
Depth 16mm
Current Rating 1A
Military Standard Not
Approval Agency EN
Physical Dimension L18.0XB16.0XH17.5 (mm)/L0.709XB0.63XH0.689 (inch)
Operating Frequency 50Hz Hz
Inductance 5.5 mH
DC Resistance (DCR) 100mOhm
Current 1A
Max DC Current 1A
Lead/Base Style Pin
Filter Type Power Line
DC Current 1A
Number of Lines 2
Dimensions
Height 17.5mm
Length 18mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
Lead Free Lead Free
