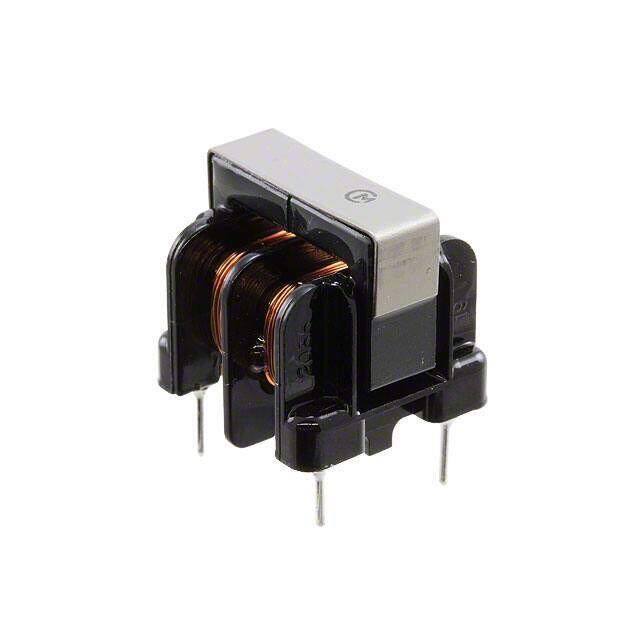

PLA10AN2021R3D2B
RoHS
/
Package Vertical, 4 PC Pin
Category Filters / Common Mode Chokes
Description
Common Mode Filters / Chokes 2.0mH 1.3A AC Line Filter
PDF
/
Inventory: 9685
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Lifecycle Status DISCONTINUED (Last Updated: 1 month ago)
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Vertical, 4 PC Pin
Technical
Operating Temperature -25°C~60°C
Packaging Bulk
Series PLA10
Size / Dimension 0.709Lx0.630W 18.00mmx16.00mm
JESD-609 Code e2
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Radial
Terminal Finish Tin/Copper (Sn/Cu)
Voltage - Rated DC 300V
Packing Method BOX
Shielding Unshielded
Depth 16mm
Military Standard Not
Physical Dimension L18.0XB16.0XH17.5 (mm)/L0.709XB0.63XH0.689 (inch)
Inductance 2 mH
DC Resistance (DCR) 100mOhm
Current 1.3A
Max DC Current 1.3A
Lead/Base Style Pin
Filter Type Power Line
DC Current 1.3A
Number of Lines 2
Rated Voltage 300V
Dimensions
Height 17.5mm
Length 18mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
Alternative Model
