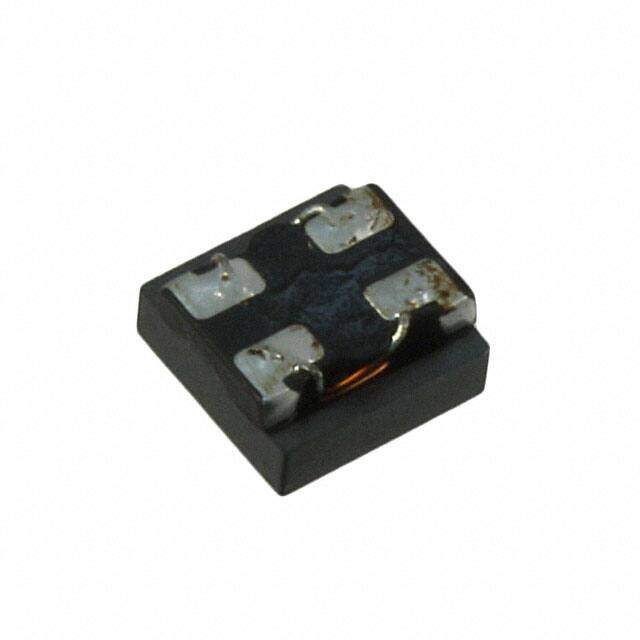

DLW5BTN142SQ2L
RoHS
/
Package Horizontal, 4 J-Lead
Category Filters / Common Mode Chokes
Description
Common Mode Filters / Chokes 2020 1400ohm 1500mA 0.040ohm+/-40
PDF
/
Buying Options
Total Price: USD $3.22
Unit Price: USD $3.2224
≥1 USD $3.2224
≥10 USD $2.64385
≥100 USD $2.5612
≥500 USD $2.47855
≥1000 USD $2.3959
Inventory: 1152
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Height 2.5mm
Technical
Impedance @ Frequency 1.4kOhm @ 100MHz
DC Resistance (DCR) (Max) 40mOhm Typ
Number of Lines 2
DC Current 1.5A
Filter Type Power, Signal Line
Max DC Current 1.5A
Current 1.5A
Impedance 1.4kOhm
Test Frequency 100MHz
Case Code (Imperial) 2020
Military Standard Not
Frequency 100MHz
Current Rating 1.5A
Depth 5.3mm
Number of Functions 2
Shielding Unshielded
Packing Method TAPE AND REEL
HTS Code 8504.50.80.00
Voltage - Rated 50V
Terminal Finish Tin/Copper (Sn/Cu)
Resistance 1.4kOhm
ECCN Code EAR99
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
JESD-609 Code e2
Tolerance 25%
Size / Dimension 0.197Lx0.197W 5.00mmx5.00mm
Series DLW5B
Packaging Cut Tape (CT)
Operating Temperature -40°C~85°C
Physical
Weight 210.013267mg
Package / Case Horizontal, 4 J-Lead
Mounting Type Surface Mount
Mount Surface Mount
