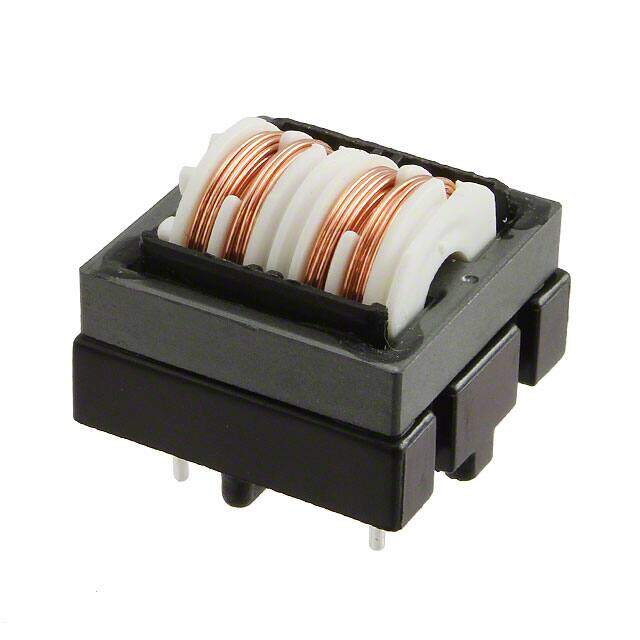

SS20H-20018
RoHS
RoHS compliant
RoHS compliantPackage Vertical, 4 PC Pin
Category Filters / Common Mode Chokes
Description
KEMET SS20H-20018INDUCTOR, COMMON MODE, 1800UH, THD
PDF
/
Buying Options
Total Price: USD $1.65
Unit Price: USD $1.647378
≥1 USD $1.647378
≥10 USD $1.554128
≥100 USD $1.466162
≥500 USD $1.383176
≥1000 USD $1.304882
Inventory: 1291
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 20 Weeks
Physical
Mounting Type Through Hole
Package / Case Vertical, 4 PC Pin
Technical
Operating Temperature -25°C~120°C
Packaging Bulk
Published 2006
Series SS
Size / Dimension 0.866Lx0.866W 22.00mmx22.00mm
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Additional Feature INDUCTANCE 1.8 MILLI HENRY
Voltage - Rated AC 250V
Inductance 1.8 mH
Filter Type Power Line
Rated Current 2A
Number of Lines 2
DC Resistance (DCR) (Max) 110mOhm
Current Rating (Max) 2A
Inductance @ Frequency 1.8mH @ 1kHz
Insulation Resistance-Min 100MOhm
Dimensions
Height (Max) 0.728 18.50mm
Compliance
RoHS Status ROHS3 Compliant
