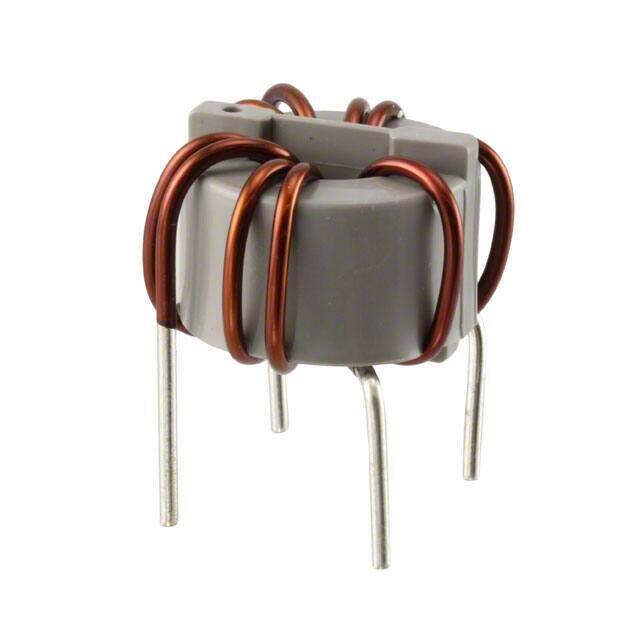

SC-20-D010
RoHS
RoHS compliant
RoHS compliantPackage Horizontal, No Base, 4 PC Pin
Category Filters / Common Mode Chokes
Description
Common Mode Filters / Chokes 20amp 10mH
PDF
/
Buying Options
Total Price: USD $5.33
Unit Price: USD $5.3328
≥1 USD $5.3328
≥10 USD $4.05328
≥100 USD $3.412992
≥500 USD $3.093024
Inventory: 181
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height (Max) 0.906 23.00mm
Technical
Inductance @ Frequency 10μH @ 100kHz
Current Rating (Max) 20A
DC Resistance (DCR) (Max) 8mOhm
Number of Lines 2
Filter Type Power Line
Inductor Type GENERAL PURPOSE INDUCTOR
Voltage - Rated DC 250V
HTS Code 8504.50.80.00
ECCN Code EAR99
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Size / Dimension 1.339Dia 34.00mm
Series SC
Published 2014
Packaging Bulk
Operating Temperature -25°C~105°C
Physical
Package / Case Horizontal, No Base, 4 PC Pin
Mounting Type Through Hole
Supply Chain
Factory Lead Time 27 Weeks
