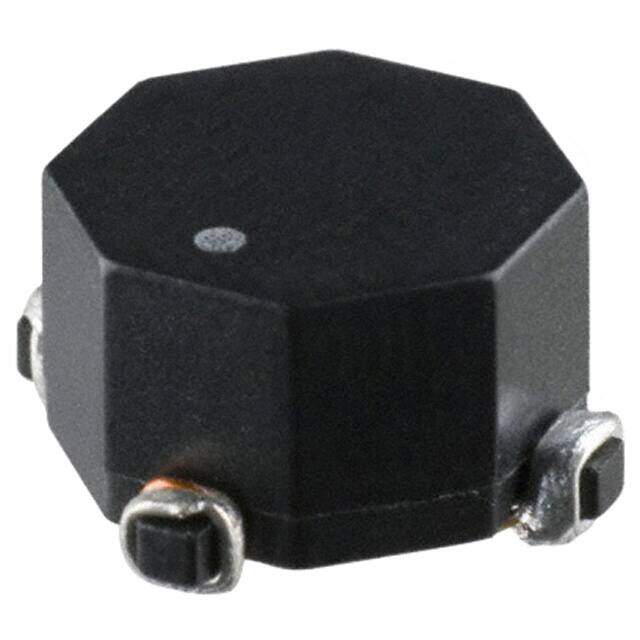

CMS2-6-R image
Favorite
CMS2-6-R image
Favorite
RoHS
RoHS RoHS compliant
Package Horizontal, 4 PC Pad
Category Filters / Common Mode Chokes
Description Common Mode Chokes / Filters 230uH 1.85A 0.044ohms
PDF
/
Buying Options
Total Price: USD $3.26
Unit Price: USD $3.260774
≥1 USD $3.260774
≥10 USD $3.076203
≥100 USD $2.902077
≥500 USD $2.737815
≥1000 USD $2.582833
Inventory: 1462
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 15 Weeks

Physical

Mount Surface Mount
Mounting Type Surface Mount
Package / Case Horizontal, 4 PC Pad
Number of Pins 4
Weight 1.360777g
Core Material Ferrite

Technical

Operating Temperature -40°C~160°C
Packaging Tape & Reel (TR)
Published 2007
Series CMS
Size / Dimension 0.350Lx0.350W 8.90mmx8.90mm
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination SMD/SMT
Max Operating Temperature 160°C
Min Operating Temperature -40°C
Shielding Unshielded
Depth 11.43mm
Military Standard Not
Inductance 230 μH
Test Frequency 100kHz
Current 1.85A
Max DC Current 1.85A
Filter Type Power Line
DC Current 1.85A
Number of Lines 2
DC Resistance (DCR) (Max) 44mOhm Typ
Current Rating (Max) 1.85A
Inductance @ Frequency 230μH @ 100kHz

Dimensions

Height 5.9944mm
Length 11.43mm
Width 8.89mm
Height (Max) 0.236 6.00mm

Compliance

RoHS Status RoHS Compliant
Lead Free Lead Free
