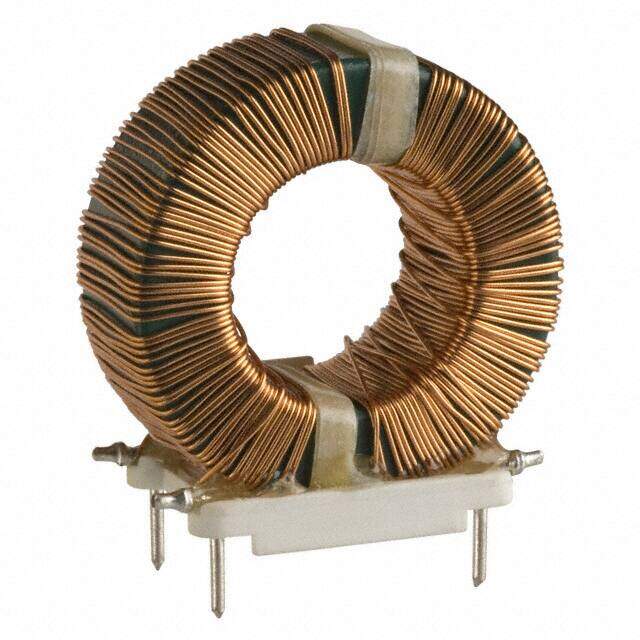

8116-RC
RoHS
RoHS compliant
RoHS compliantPackage Vertical, 4 PC Pin
Category Filters / Common Mode Chokes
Description
CMC 50MH 2.3A 2LN TH
PDF
/
Buying Options
Total Price: USD $15.33
Unit Price: USD $15.328108
≥1 USD $15.328108
≥200 USD $5.931682
≥500 USD $5.724244
≥1000 USD $5.620525
Inventory: 1358
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Height 41.91mm
Diameter 39.37mm
Technical
Inductance @ Frequency 50mH @ 1kHz
DC Resistance (DCR) (Max) 450mOhm
Number of Lines 2
DC Current 2.3A
Filter Type DATA LINE FILTER
Lead/Base Style Pin
Max DC Current 2.3A
Current 2.3A
Element Configuration Dual
Test Frequency 1kHz
Inductance 50 mH
Lead Diameter 1.27 mm
Lead Pitch 22.86mm
Approval Agency UL
Military Standard Not
Current Rating 2.3A
Depth 20.57mm
Number of Functions 2
Shielding Unshielded
Resistance 450mOhm
ECCN Code EAR99
Termination Radial
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Size / Dimension 1.550Lx0.800W 39.37mmx20.32mm
Series 8100
Published 2011
Packaging Bulk
Operating Temperature -55°C~105°C
Physical
Number of Pins 4
Package / Case Vertical, 4 PC Pin
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 18 Weeks
