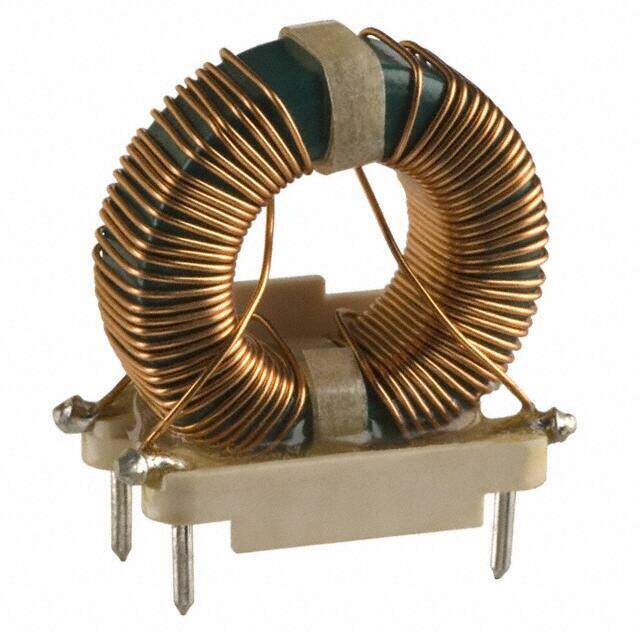

8105
RoHS
/
Package Vertical, 4 PC Pin
Category Filters / Common Mode Chokes
Description
CMC 7MH 2.8A 2LN TH
PDF
/
Buying Options
Total Price: USD $0.12
Unit Price: USD $0.119855
≥1 USD $0.119855
Inventory: 3350
Minimum: 1
-
+
Technical Details
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Vertical, 4 PC Pin
Number of Pins 4
Technical
Operating Temperature -55°C~105°C
Packaging Tray
Series 8100
Size / Dimension 1.200Lx0.600W 30.48mmx15.24mm
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Resistance 120mOhm
Max Operating Temperature 105°C
Min Operating Temperature -55°C
Current Rating 2.8A
Base Part Number 8100
Inductance 7 mH
Current 2.8A
Number of Lines 2
DC Resistance (DCR) (Max) 120mOhm
Current Rating (Max) 2.8A
Inductance @ Frequency 7mH @ 1kHz
Dimensions
Height 30.48mm
Length 30.48mm
Width 15.24mm
Height (Max) 1.200 30.48mm
Compliance
RoHS Status Non-RoHS Compliant
Lead Free Contains Lead
