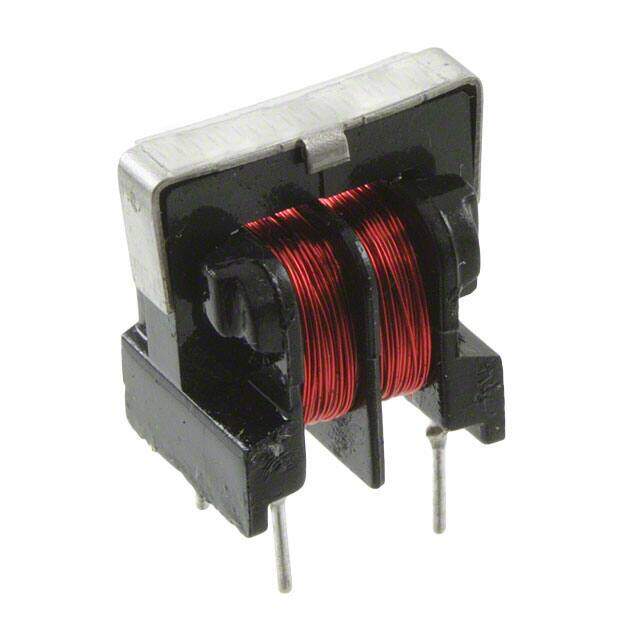

7353-V-RC
RoHS
RoHS compliant
RoHS compliantPackage Vertical, 4 PC Pin
Category Filters / Common Mode Chokes
Description
CMC 5MH 500MA 2LN TH
PDF
/
Buying Options
Total Price: USD $2.73
Unit Price: USD $2.728
≥1 USD $2.728
≥10 USD $2.21408
≥100 USD $1.78992
≥500 USD $1.676963
≥1000 USD $1.6016
≥3000 USD $1.554494
Inventory: 304
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Length 17mm
Height 16.9926mm
Technical
Inductance @ Frequency 5mH @ 1kHz
DC Resistance (DCR) (Max) 1Ohm
Number of Lines 2
DC Current 500mA
Filter Type DATA LINE FILTER
Lead/Base Style Pin
Max DC Current 500mA
Current 500mA
Element Configuration Dual
Test Frequency 1kHz
Inductance 5 mH
Physical Dimension L17.0XB11.0XH17.0 (mm)/L0.669XB0.433XH0.669 (inch)
Lead Pitch 8mm
Approval Agency UL
Military Standard Not
Depth 11mm
Number of Functions 2
HTS Code 8504.50.80.00
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Size / Dimension 0.669Lx0.433W 17.00mmx11.00mm
Series 7300
Published 2009
Packaging Bulk
Operating Temperature -55°C~105°C
Physical
Package / Case Vertical, 4 PC Pin
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 18 Weeks
