7120-RC
RoHS
RoHS compliant
RoHS compliantPackage Vertical, No Base, 4 PC Pin
Category Filters / Common Mode Chokes
Description

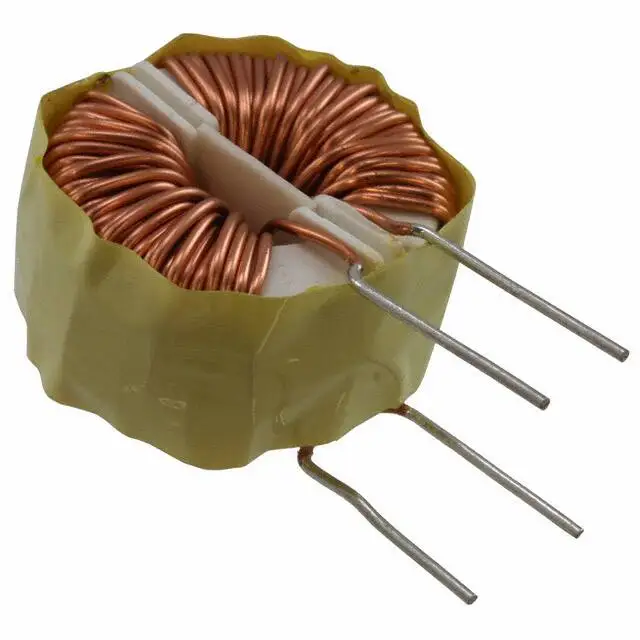

Common Mode Chokes Dual 6.8mH 1kHz 4A 60mOhm DCR Thru-Hole
PDF
/
Buying Options
Total Price: USD $5.47
Unit Price: USD $5.467366
≥1 USD $5.467366
≥10 USD $5.157887
≥100 USD $4.865943
≥500 USD $4.590507
≥1000 USD $4.330662
Inventory: 6816
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Package / Case Vertical, No Base, 4 PC Pin
Core Material Ferrite
Technical
Operating Temperature -55°C~105°C
Packaging Bulk
Published 2009
Series 7100
Size / Dimension 1.230Diax0.900W 31.24mmx22.86mm
Tolerance 15%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Max Operating Temperature 105°C
Min Operating Temperature -55°C
Shielding Unshielded
Depth 20.32mm
Base Part Number 7100
Military Standard Not
Lead Pitch 10.16mm
Inductance 6.8 mH
Test Frequency 1kHz
Element Configuration Dual
Current 4A
Max DC Current 4A
Lead/Base Style Pin
DC Current 4A
Number of Lines 2
DC Resistance (DCR) (Max) 60mOhm
Current Rating (Max) 4A
Inductance @ Frequency 6.8mH @ 1kHz
Dimensions
Diameter 30.48mm
Height 30.48mm
Length 30.48mm
Width 20.32mm
Height (Max) 1.230 31.24mm
Compliance
RoHS Status ROHS3 Compliant
