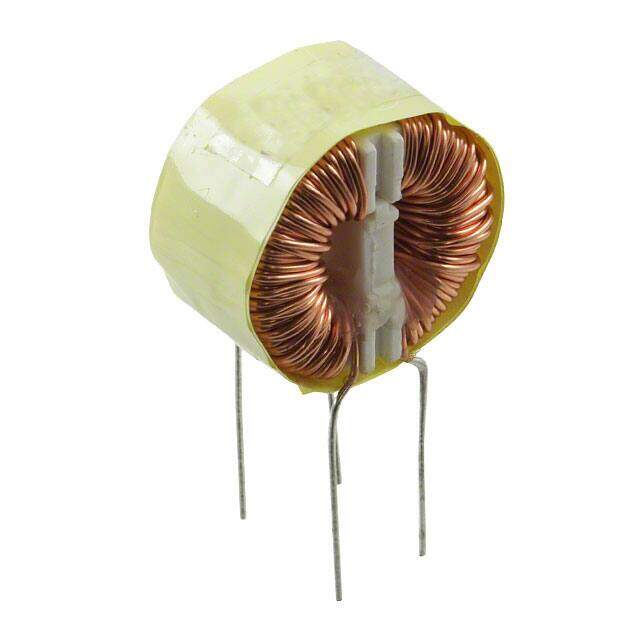

7115-RC
RoHS
RoHS compliant
RoHS compliantPackage Vertical, No Base, 4 PC Pin
Category Filters / Common Mode Chokes
Description
CMC 4.25MH 2A 2LN TH
PDF
/
Buying Options
Total Price: USD $3.88
Unit Price: USD $3.881553
≥1 USD $3.881553
≥10 USD $3.661839
≥100 USD $3.45457
≥500 USD $3.259024
≥1000 USD $3.074554
Inventory: 1192
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Vertical, No Base, 4 PC Pin
Core Material Ferrite
Technical
Operating Temperature -55°C~105°C
Packaging Bulk
Published 2009
Series 7100
Size / Dimension 0.900Diax0.650W 22.86mmx16.51mm
Tolerance 15%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
HTS Code 8504.50.80.00
Shielding Unshielded
Number of Functions 2
Depth 13.97mm
Military Standard Not
Approval Agency UL
Lead Pitch 7.62mm
Inductance 4.25 mH
Test Frequency 1kHz
Element Configuration Dual
Current 2A
Max DC Current 2A
Lead/Base Style Pin
Filter Type DATA LINE FILTER
DC Current 2A
Number of Lines 2
DC Resistance (DCR) (Max) 110mOhm
Inductance @ Frequency 4.25mH @ 1kHz
Dimensions
Height 20.32mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
