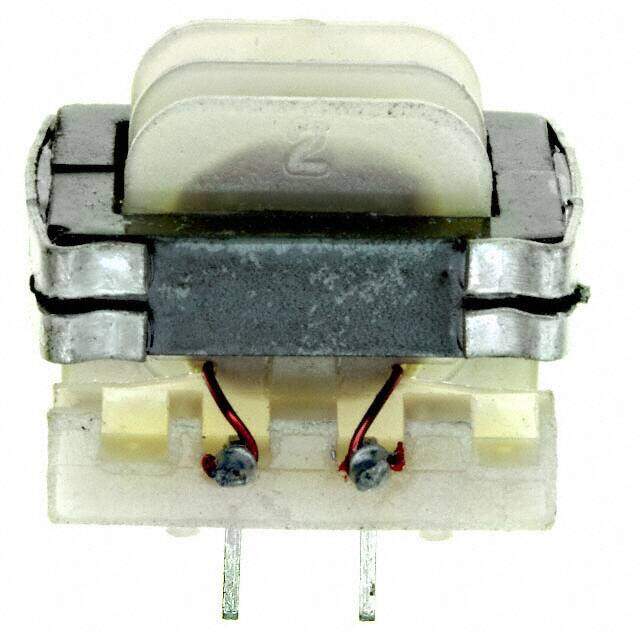

CM9900-823
RoHS
/
Package Vertical, 4 PC Pin
Category Filters / Common Mode Chokes
Description
CMC 82UH 2.8A 2LN TH
PDF
/
Buying Options
Total Price: USD $15.66
Unit Price: USD $15.657645
≥1 USD $15.657645
≥200 USD $6.248091
≥500 USD $6.03934
≥1000 USD $5.935621
Inventory: 1667
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status Non-RoHS Compliant
Radiation Hardening No
Dimensions
Height 17mm
Technical
Inductance @ Frequency 82μH @ 1kHz
DC Resistance (DCR) (Max) 23mOhm
Number of Lines 2
Filter Type DATA LINE FILTER
Lead/Base Style Pin
Max DC Current 2.8A
Test Frequency 1kHz
Inductance 82 mH
Lead Pitch 5.1mm
Depth 18.8mm
Number of Functions 2
Shielding Unshielded
HTS Code 8504.50.80.00
Terminal Finish Tin (Sn)
ECCN Code EAR99
Termination Radial
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Pbfree Code no
JESD-609 Code e3
Tolerance 25%
Size / Dimension 0.839Lx0.740W 21.30mmx18.80mm
Series CM9900
Published 2002
Packaging Bulk
Operating Temperature -55°C~125°C
Physical
Core Material Ferrite
Package / Case Vertical, 4 PC Pin
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 8 Weeks
