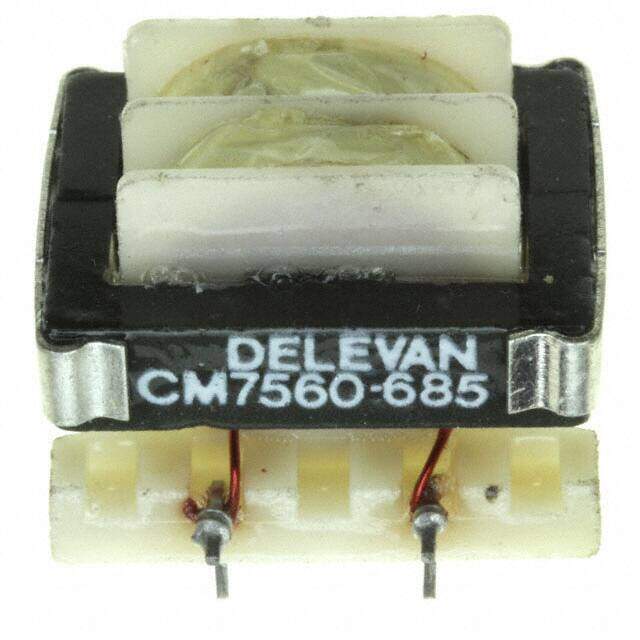

CM7560-685
RoHS
/
Package Vertical, 4 PC Pin
Category Filters / Common Mode Chokes
Description
CMC 6.8MH 880MA 2LN TH
PDF
/
Buying Options
Total Price: USD $40.6
Unit Price: USD $40.602745
≥1 USD $40.602745
≥200 USD $16.201186
≥500 USD $15.658958
≥1000 USD $15.39244
Inventory: 5414
Minimum: 1
-
+
Technical Details
Dimensions
Height 21.8694mm
Compliance
Radiation Hardening No
RoHS Status Non-RoHS Compliant
Lead Free Contains Lead
Technical
Inductance @ Frequency 6.8mH @ 1kHz
DC Resistance (DCR) (Max) 600mOhm
Number of Lines 2
Rated Current 0.88A
Filter Type DATA LINE FILTER
Lead/Base Style Pin
Max DC Current 880mA
Test Frequency 1kHz
Inductance 6.8 mH
Lead Pitch 10.2mm
Depth 28.47mm
Number of Functions 2
Shielding Unshielded
HTS Code 8504.50.80.00
Terminal Finish Tin (Sn)
ECCN Code EAR99
Termination Radial
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Pbfree Code no
JESD-609 Code e3
Tolerance 25%
Size / Dimension 1.071Lx0.858W 27.20mmx21.80mm
Series CM7560
Published 2010
Packaging Bulk
Operating Temperature -55°C~125°C
Physical
Core Material Ferrite
Package / Case Vertical, 4 PC Pin
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 8 Weeks
