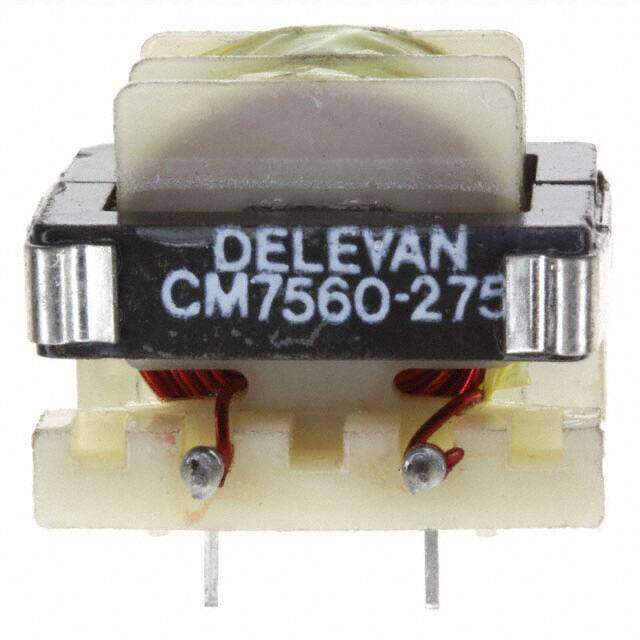

CM7560-275

API Delevan Inc.
RoHS
/
Package Vertical, 4 PC Pin
Category Filters / Common Mode Chokes
Description CMC 2.7MH 1.4A 2LN TH
PDF
/
Inventory: 10014
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Lead Free Contains Lead
RoHS Status Non-RoHS Compliant
Radiation Hardening No

Dimensions

Height 21.8694mm

Technical

Inductance @ Frequency 2.7mH @ 1kHz
DC Resistance (DCR) (Max) 180mOhm
Number of Lines 2
Filter Type DATA LINE FILTER
Lead/Base Style Pin
Max DC Current 1.4A
Test Frequency 1kHz
Inductance 2.7 mH
Lead Pitch 10.2mm
Depth 28.47mm
Number of Functions 2
Shielding Unshielded
HTS Code 8504.50.80.00
Terminal Finish Tin (Sn)
ECCN Code EAR99
Termination Radial
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Pbfree Code no
JESD-609 Code e3
Tolerance 25%
Size / Dimension 1.071Lx0.858W 27.20mmx21.80mm
Series CM7560
Published 2010
Packaging Bulk
Operating Temperature -55°C~125°C

Physical

Core Material Ferrite
Package / Case Vertical, 4 PC Pin
Mounting Type Through Hole
Mount Through Hole

Supply Chain

Factory Lead Time 8 Weeks
