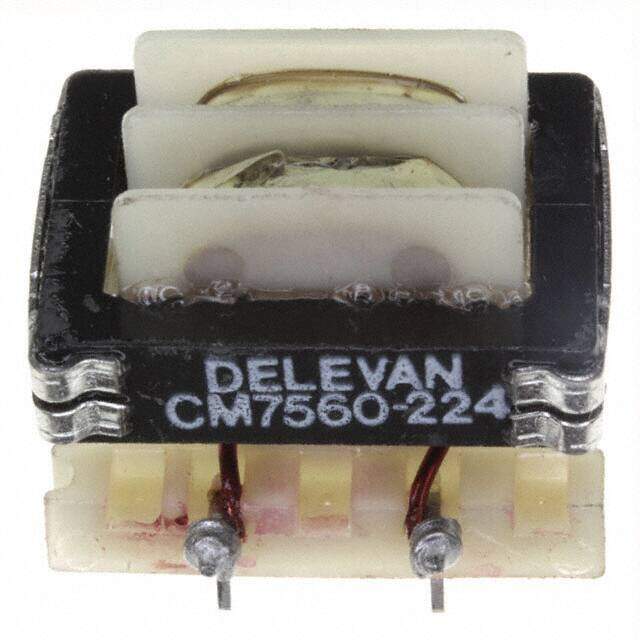

CM7560-224
RoHS
/
Package Vertical, 4 PC Pin
Category Filters / Common Mode Chokes
Description
CMC 220UH 4.5A 2LN TH
PDF
/
Buying Options
Total Price: USD $40.6
Unit Price: USD $40.602745
≥1 USD $40.602745
≥200 USD $16.201186
≥500 USD $15.658958
≥1000 USD $15.39244
Inventory: 9758
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status Non-RoHS Compliant
Radiation Hardening No
Dimensions
Height (Max) 0.861 21.86mm
Width 21.7932mm
Length 27.2034mm
Height 21.8694mm
Technical
Inductance @ Frequency 220μH @ 1kHz
Current Rating (Max) 4.5A
DC Resistance (DCR) (Max) 20mOhm
Number of Lines 2
Lead/Base Style Pin
Max DC Current 4.5A
Test Frequency 1kHz
Inductance 220 μH
Lead Pitch 10.2mm
Depth 28.47mm
Shielding Unshielded
Min Operating Temperature -55°C
Max Operating Temperature 125°C
Termination Radial
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Tolerance 25%
Size / Dimension 1.071Lx0.858W 27.20mmx21.80mm
Series CM7560
Published 2010
Packaging Bulk
Operating Temperature -55°C~125°C
Physical
Core Material Ferrite
Package / Case Vertical, 4 PC Pin
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 8 Weeks
