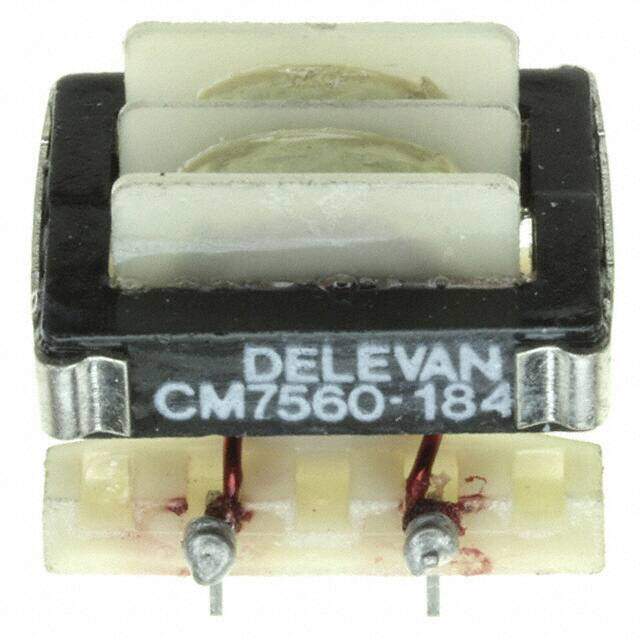

CM7560-184
RoHS
/
Package Vertical, 4 PC Pin
Category Filters / Common Mode Chokes
Description
Common Mode Filters / Chokes 180uH 25% .019ohm
PDF
/
Buying Options
Total Price: USD $46.4
Unit Price: USD $46.401825
≥1 USD $46.401825
≥200 USD $18.515829
≥500 USD $17.89614
≥1000 USD $17.590234
Inventory: 7445
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status Non-RoHS Compliant
Radiation Hardening No
Dimensions
Height 21.8694mm
Technical
Inductance @ Frequency 180μH @ 1kHz
DC Resistance (DCR) (Max) 19mOhm
Number of Lines 2
Filter Type DATA LINE FILTER
Lead/Base Style Pin
Max DC Current 4.5A
Test Frequency 1kHz
Inductance 180 μH
Lead Pitch 10.2mm
Depth 28.47mm
Number of Functions 2
Shielding Unshielded
HTS Code 8504.50.80.00
Terminal Finish Tin (Sn)
ECCN Code EAR99
Termination Radial
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Pbfree Code no
JESD-609 Code e3
Tolerance 25%
Size / Dimension 1.071Lx0.858W 27.20mmx21.80mm
Series CM7560
Published 2010
Packaging Bulk
Operating Temperature -55°C~125°C
Physical
Core Material Ferrite
Package / Case Vertical, 4 PC Pin
Mounting Type Through Hole
Mount Through Hole
