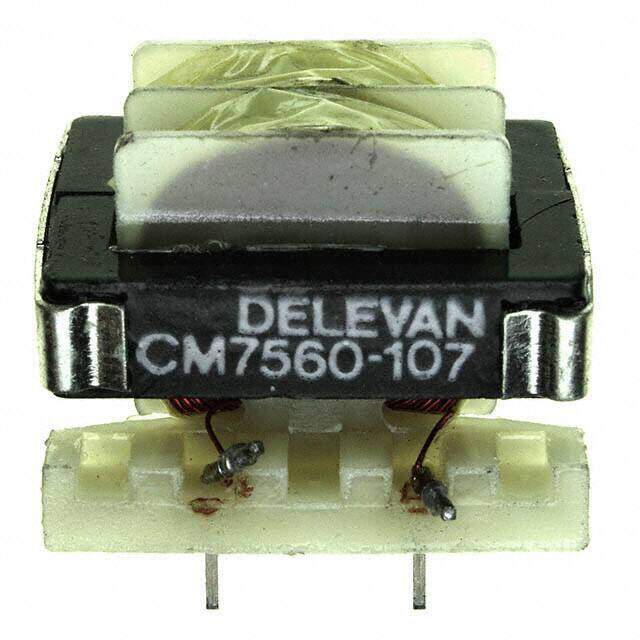

CM7560-107
RoHS
/
Package Vertical, 4 PC Pin
Category Filters / Common Mode Chokes
Description
CMC 100MH 270MA 2LN TH
PDF
/
Buying Options
Total Price: USD $59.68
Unit Price: USD $59.67787
≥1 USD $59.67787
≥200 USD $23.812067
≥500 USD $23.01645
≥1000 USD $22.623893
Inventory: 3458
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Vertical, 4 PC Pin
Core Material Ferrite
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Published 2010
Series CM7560
Size / Dimension 1.071Lx0.858W 27.20mmx21.80mm
Tolerance 25%
JESD-609 Code e3
Pbfree Code no
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Termination Radial
ECCN Code EAR99
Terminal Finish Tin (Sn)
HTS Code 8504.50.80.00
Shielding Unshielded
Number of Functions 2
Depth 28.47mm
Lead Pitch 10.2mm
Inductance 100 mH
Test Frequency 1kHz
Max DC Current 270mA
Lead/Base Style Pin
Filter Type DATA LINE FILTER
Number of Lines 2
DC Resistance (DCR) (Max) 6.4Ohm
Inductance @ Frequency 100mH @ 1kHz
Dimensions
Height 21.8694mm
Compliance
Radiation Hardening No
RoHS Status Non-RoHS Compliant
Lead Free Contains Lead
