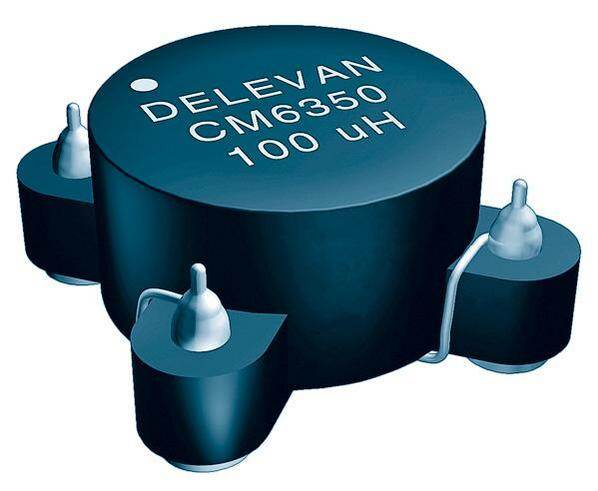

CM6350R-154
RoHS
RoHS compliant
RoHS compliantPackage Horizontal, 4 PC Pad
Category Filters / Common Mode Chokes
Description
Common Mode Chokes / Filters 150uH 25% .02ohm Choke SMT Common
PDF
/
Buying Options
Total Price: USD $19.98
Unit Price: USD $19.978399
≥1 USD $19.978399
≥200 USD $7.971929
≥600 USD $7.70541
≥1200 USD $7.57412
Inventory: 3998
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height 5.334mm
Diameter 8.9mm
Technical
Inductance @ Frequency 150μH @ 10kHz
DC Resistance (DCR) (Max) 20mOhm
Number of Lines 2
Filter Type Power Line
Max DC Current 2.7A
Current 2.7A
Inductance 150 μH
Depth 9.39mm
Number of Functions 2
Shielding Unshielded
Packing Method TAPE AND REEL
HTS Code 8504.50.80.00
Terminal Finish Tin (Sn)
ECCN Code EAR99
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Tolerance 25%
Size / Dimension 0.360Lx0.360W 9.14mmx9.14mm
Series CM6350R
Published 2010
Packaging Tape & Reel (TR)
Operating Temperature -55°C~105°C
Physical
Core Material Ferrite
Package / Case Horizontal, 4 PC Pad
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 10 Weeks
