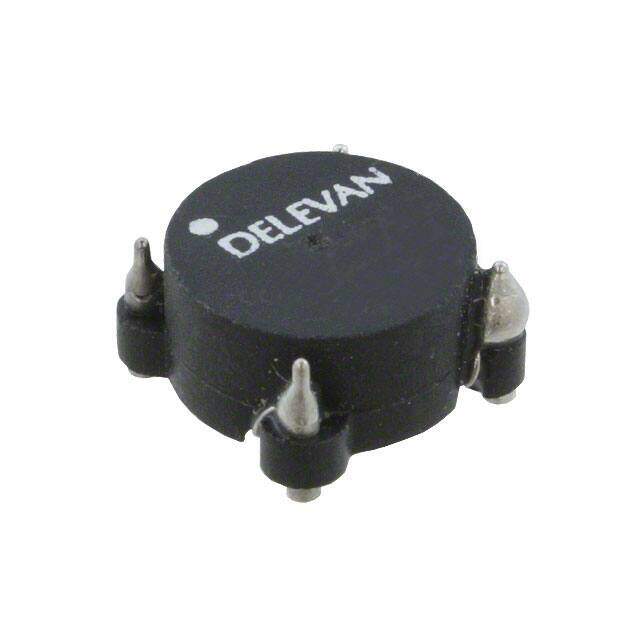

CM6350-334 image
Favorite
CM6350-334 image
Favorite

CM6350-334

API Delevan Inc.
RoHS
/
Package Horizontal, 4 PC Pad
Category Filters / Common Mode Chokes
Description CMC 330UH 1.8A 2LN SMD
PDF
/
Buying Options
Total Price: USD $26.89
Unit Price: USD $26.892131
≥1 USD $26.892131
≥200 USD $10.730332
≥500 USD $10.37191
≥1000 USD $10.194669
Inventory: 1183
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Contains Lead
RoHS Status Non-RoHS Compliant

Dimensions

Height 5.334mm
Diameter 8.9mm

Technical

Inductance @ Frequency 330μH @ 10kHz
DC Resistance (DCR) (Max) 40mOhm
Number of Lines 2
Filter Type Power Line
Max DC Current 1.8A
Inductance 330 μH
Depth 9.39mm
Number of Functions 2
Shielding Unshielded
Packing Method TR
HTS Code 8504.50.80.00
Terminal Finish Tin (Sn)
ECCN Code EAR99
Termination SMD/SMT
Part Status Active
Pbfree Code no
JESD-609 Code e3
Tolerance 25%
Size / Dimension 0.360Lx0.360W 9.14mmx9.14mm
Series CM6350
Published 2002
Packaging Bulk
Operating Temperature -55°C~105°C

Physical

Core Material Ferrite
Package / Case Horizontal, 4 PC Pad
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Factory Lead Time 10 Weeks
