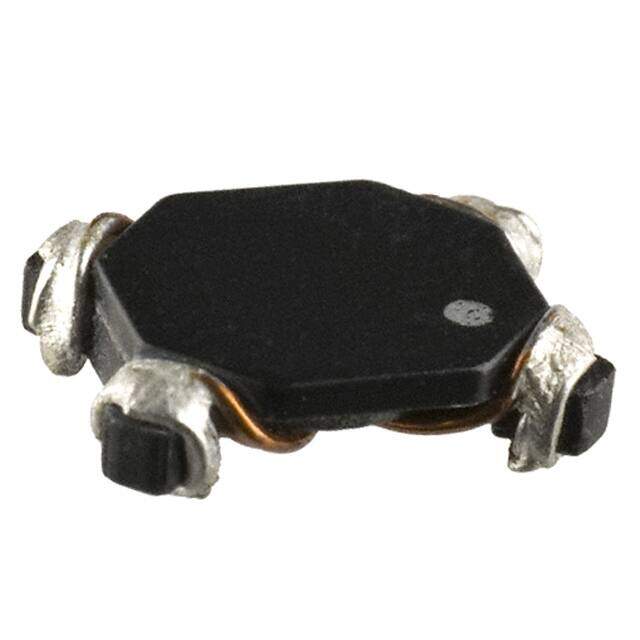

CM6296R-104
RoHS
RoHS compliant
RoHS compliantPackage Horizontal, 4 PC Pad
Category Filters / Common Mode Chokes
Description
CMC 100UH 9.5A 2LN SMD
PDF
/
Buying Options
Total Price: USD $10.91
Unit Price: USD $10.912
≥1 USD $10.912
≥10 USD $10.38048
≥100 USD $10.20448
≥500 USD $9.85248
≥1000 USD $9.359856
Inventory: 320
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Height 10.7442mm
Technical
Inductance @ Frequency 100μH @ 1kHz
Current Rating (Max) 9.5A
DC Resistance (DCR) (Max) 16mOhm
Number of Lines 2
Rated Current 9.5A
Filter Type DATA LINE FILTER
Max DC Current 19A
Element Configuration Single
Inductance 100 μH
Number of Functions 2
Shielding Unshielded
Power Rating 2.5W
HTS Code 8504.50.80.00
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
ECCN Code EAR99
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 5A (24 Hours)
Part Status Active
Pbfree Code yes
JESD-609 Code e1
Tolerance 25%
Size / Dimension 1.058Lx1.058W 26.87mmx26.87mm
Series CM6296R
Published 2010
Packaging Bulk
Operating Temperature -55°C~125°C
Physical
Package / Case Horizontal, 4 PC Pad
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 8 Weeks
