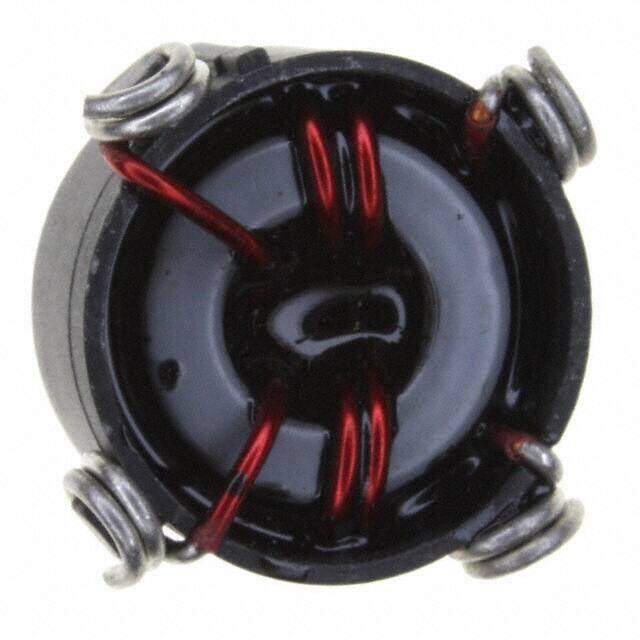

CM6296-154
RoHS
/
Package Horizontal, 4 PC Pad
Category Filters / Common Mode Chokes
Description
CMC 150UH 9.5A 2LN SMD
PDF
/
Buying Options
Total Price: USD $23.24
Unit Price: USD $23.23833
≥1 USD $23.23833
≥200 USD $9.273013
≥500 USD $8.963168
≥1000 USD $8.809559
Inventory: 1341
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status Non-RoHS Compliant
Radiation Hardening No
Dimensions
Height 10.7442mm
Technical
Inductance @ Frequency 150μH @ 1kHz
Current Rating (Max) 9.5A
DC Resistance (DCR) (Max) 16mOhm
Number of Lines 2
Rated Current 9.5A
Filter Type DATA LINE FILTER
Max DC Current 19A
Element Configuration Single
Inductance 150 μH
Number of Functions 2
Shielding Unshielded
Power Rating 2.5W
HTS Code 8504.50.80.00
Terminal Finish Tin/Lead (Sn/Pb)
ECCN Code EAR99
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 5A (24 Hours)
Part Status Active
Pbfree Code no
JESD-609 Code e0
Tolerance 25%
Size / Dimension 1.058Lx1.058W 26.87mmx26.87mm
Series CM6296
Published 2002
Packaging Bulk
Operating Temperature -55°C~125°C
Physical
Package / Case Horizontal, 4 PC Pad
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 8 Weeks
