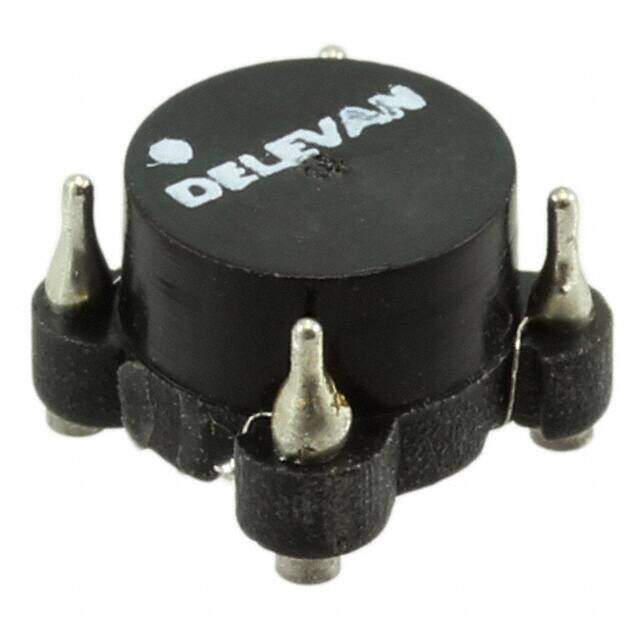

CM6149R-225
RoHS
RoHS compliant
RoHS compliantPackage Horizontal, 4 PC Pad
Category Filters / Common Mode Chokes
Description
CMC 2.2MH 180MA 2LN SMD
PDF
/
Buying Options
Total Price: USD $14.72
Unit Price: USD $14.7224
≥1 USD $14.7224
≥10 USD $13.9832
Inventory: 180
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Height 5.334mm
Diameter 6.35mm
Technical
Inductance @ Frequency 2.2mH @ 10kHz
DC Resistance (DCR) (Max) 750mOhm
Number of Lines 2
Rated Current 0.18A
Filter Type DATA LINE FILTER
Max DC Current 180mA
Inductance 2.2 mH
Depth 7.49mm
Number of Functions 2
Shielding Unshielded
Packing Method TAPE AND REEL
HTS Code 8504.50.80.00
Terminal Finish Tin (Sn)
ECCN Code EAR99
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Tolerance 25%
Size / Dimension 0.285Lx0.285W 7.24mmx7.24mm
Series CM6149R
Published 2010
Packaging Bulk
Operating Temperature -55°C~105°C
Physical
Package / Case Horizontal, 4 PC Pad
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 8 Weeks
