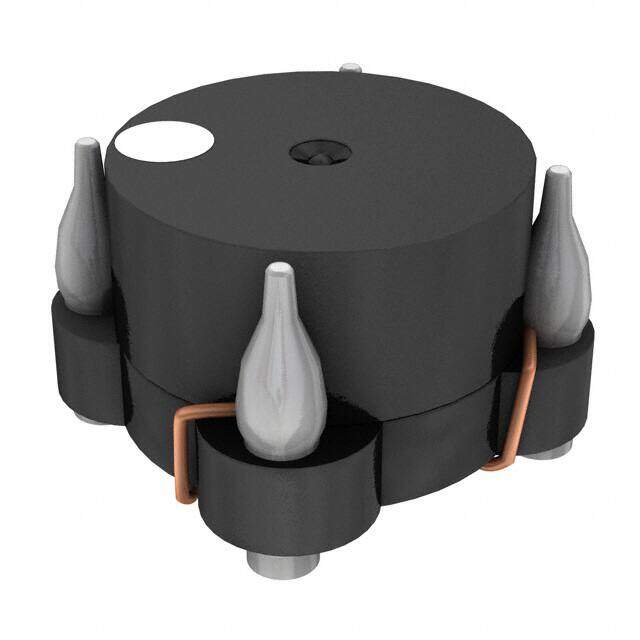

CM6149-225
RoHS
/
Package Horizontal, 4 PC Pad
Category Filters / Common Mode Chokes
Description
Common Mode Filters / Chokes 2200uH 25% .75ohm Choke SMT Common
PDF
/
Buying Options
Total Price: USD $34.72
Unit Price: USD $34.718328
≥1 USD $34.718328
≥200 USD $13.853721
≥500 USD $13.390267
≥1000 USD $13.161823
Inventory: 6819
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status Non-RoHS Compliant
Dimensions
Height 5.334mm
Diameter 6.35mm
Technical
Inductance @ Frequency 2.2mH @ 10kHz
DC Resistance (DCR) (Max) 750mOhm
Number of Lines 2
Rated Current 0.18A
Filter Type DATA LINE FILTER
Max DC Current 180mA
Inductance 2.2 mH
Depth 7.49mm
Number of Functions 2
Shielding Unshielded
Packing Method TAPE AND REEL
HTS Code 8504.50.80.00
Terminal Finish Tin (Sn)
ECCN Code EAR99
Termination SMD/SMT
Part Status Active
Pbfree Code no
JESD-609 Code e3
Tolerance 25%
Size / Dimension 0.285Lx0.285W 7.24mmx7.24mm
Series CM6149
Published 2003
Packaging Bulk
Operating Temperature -55°C~105°C
Physical
Package / Case Horizontal, 4 PC Pad
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 8 Weeks
