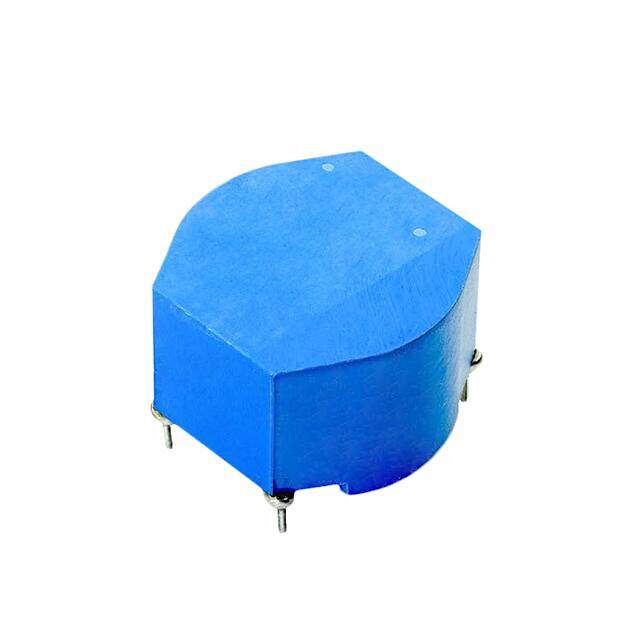

CM1011R-254
RoHS
RoHS compliant
RoHS compliantPackage Horizontal, 4 PC Pin
Category Filters / Common Mode Chokes
Description
CMC 250UH 10A 2LN TH
PDF
/
Buying Options
Total Price: USD $47.46
Unit Price: USD $47.456083
≥1 USD $47.456083
≥200 USD $18.935957
≥500 USD $18.303139
≥1000 USD $17.990669
Inventory: 1627
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Horizontal, 4 PC Pin
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Published 2010
Series CM1011R
Size / Dimension 1.098Lx1.098W 27.90mmx27.90mm
JESD-609 Code e2
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
ECCN Code EAR99
Terminal Finish Tin/Copper (Sn/Cu)
HTS Code 8504.50.80.00
Number of Functions 2
Inductance 250 μH
Current 10A
Filter Type DATA LINE FILTER
Number of Lines 2
DC Resistance (DCR) (Max) 6mOhm
Inductance @ Frequency 250μH @ 1kHz
Dimensions
Height 18.5674mm
Compliance
RoHS Status ROHS3 Compliant
