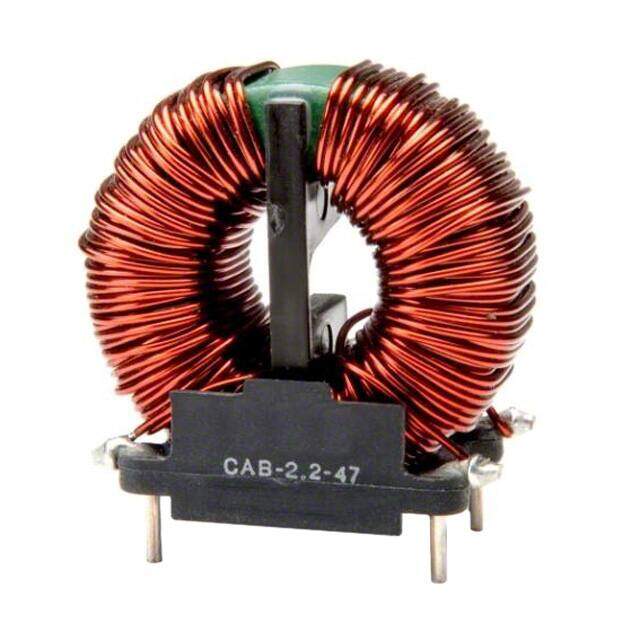

CAB-2.2-47
RoHS
RoHS compliant
RoHS compliantPackage Vertical, 4 PC Pin
Category Filters / Common Mode Chokes
Description
CMC 47MH 2.2A 2LN TH
PDF
/
Inventory: 6113
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height (Max) 1.516 38.50mm
Width 20.2946mm
Length 27.8892mm
Height 38.5064mm
Technical
Inductance @ Frequency 47mH @ 10kHz
Current Rating (Max) 2.2A
DC Resistance (DCR) (Max) 185mOhm Typ
Number of Lines 2
Filter Type Signal Line
Current 2.2A
Inductance 47 mH
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Size / Dimension 1.098Lx0.799W 27.90mmx20.30mm
Series CA
Packaging Tray
Operating Temperature -40°C~125°C
Physical
Package / Case Vertical, 4 PC Pin
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 16 Weeks
