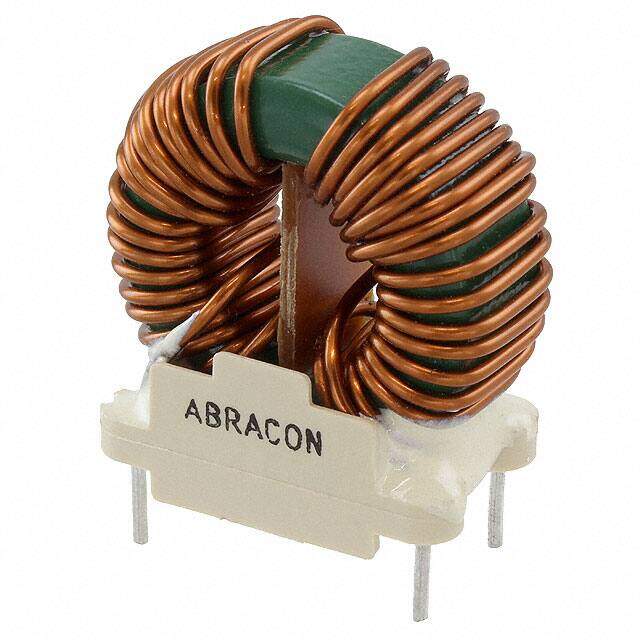

ALFT-04-7
RoHS
RoHS compliant
RoHS compliantPackage Vertical, 4 PC Pin
Category Filters / Common Mode Chokes
Description
INDUCT COM MODE 20M OHM 4.5MH TH
PDF
/
Buying Options
Total Price: USD $8.75
Unit Price: USD $8.745227
≥1 USD $8.745227
≥200 USD $3.489688
≥500 USD $3.37284
≥1000 USD $3.315073
Inventory: 8080
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Height (Max) 1.251 31.80mm
Width 18mm
Length 34.0106mm
Height 40.9956mm
Technical
Inductance @ Frequency 4.5mH @ 1kHz
Current Rating (Max) 3.7A
DC Resistance (DCR) (Max) 20mOhm
Number of Lines 2
Filter Type Signal Line
Lead/Base Style Pin
Max DC Current 13A
Current 3.7A
Test Frequency 1kHz
Inductance 4.5 mH
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Termination Radial
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance 20%
Size / Dimension 1.339Lx0.709W 34.00mmx18.00mm
Series ALFT-04
Published 2008
Packaging Tray
Operating Temperature -25°C~85°C
Physical
Package / Case Vertical, 4 PC Pin
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 11 Weeks
