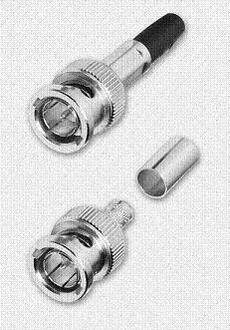

HP75BNC7 image
Favorite
HP75BNC7 image
Favorite
RoHS
/
Package /
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description RF Connectors / Coaxial Connectors 75 OHM BELDEN 1694A
PDF
/
Inventory: 9312
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Physical

Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Body Material Copper Alloy
Center Contact Plating Gold
Center Contact Material Copper Alloy

Technical

Operating Temperature -65°C~165°C
Packaging Bulk
Published 2001
Series HP75BNC
JESD-609 Code e4
Part Status Obsolete
Moisture Sensitivity Level (MSL) Not Applicable
Connector Type Plug, Male Pin
Gender Male
Voltage - Rated 500V
Fastening Type Bayonet Lock
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Option GENERAL PURPOSE
Housing Color Silver
Body/Shell Style RECEPTACLE
Impedance 75Ohm
Connector Style BNC
Number of Ports 1
Mating Cycles 500
Contact Termination Crimp
Includes 2 pcs - 1 Connector, 1 Ferrule
Operating Frequency-Max 3GHz
Body Finish Nickel
Cable Group Belden 1694A
VSWR 1.5

Compliance

RoHS Status Non-RoHS Compliant
Lead Free Contains Lead
