GRF1-P-P-04-E-ST-TH1
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description

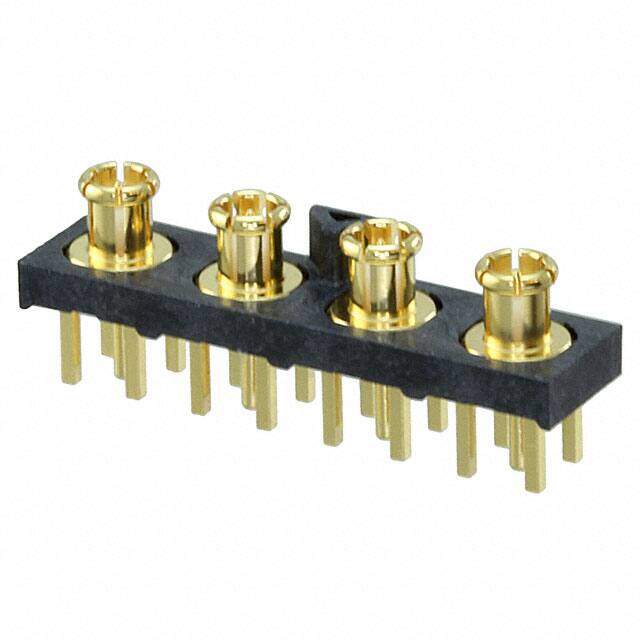

SAMTEC GRF1-P-P-04-E-ST-TH1RF / Coaxial Connector, MMCX Coaxial, Straight Plug, Through Hole Vertical, 50 ohm
PDF
/
Buying Options
Total Price: USD $17.83
Unit Price: USD $17.8288
≥1 USD $17.8288
≥10 USD $15.4484
≥100 USD $14.641792
≥500 USD $14.429712
≥1000 USD $12.732016
≥3000 USD $11.883238
Inventory: 316
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Width 5mm
Length 20mm
Technical
Contact Termination Solder
Connector Style MMCX
Impedance 50Ohm
Dielectric Withstanding Voltage 700VAC V
Contact Resistance 5mOhm
Contact Style COAX
Rated Current (Signal) 3.6A
Mating Information MULTIPLE MATING PARTS AVAILABLE
Lead Pitch 5mm
Reliability COMMERCIAL
Frequency 6GHz
Depth 5mm
Orientation Straight
Total Number of Contacts 1
Option GENERAL PURPOSE
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Subcategory Other RF Connectors
Fastening Type Snap-On
Voltage - Rated 500V
Gender Male
Number of Rows 1
Number of Positions 4
Connector Type Plug, Male Pin
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e4
Series GRF1-P
Published 2005
Packaging Tube
Operating Temperature -40°C~90°C
Physical
Center Contact Plating Gold
Body Material Brass
Housing Material Plastic
Dielectric Material Polytetrafluoroethylene (PTFE)
Insulation Material Polytetrafluoroethylene
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 3 Weeks
