RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description Coaxial Connector
PDF
/
Inventory: 3603
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status ROHS3 Compliant

Technical

Shield Termination Push On
Cable Group RG-405 (.085 Semi Rigid)
Body Finish Gold

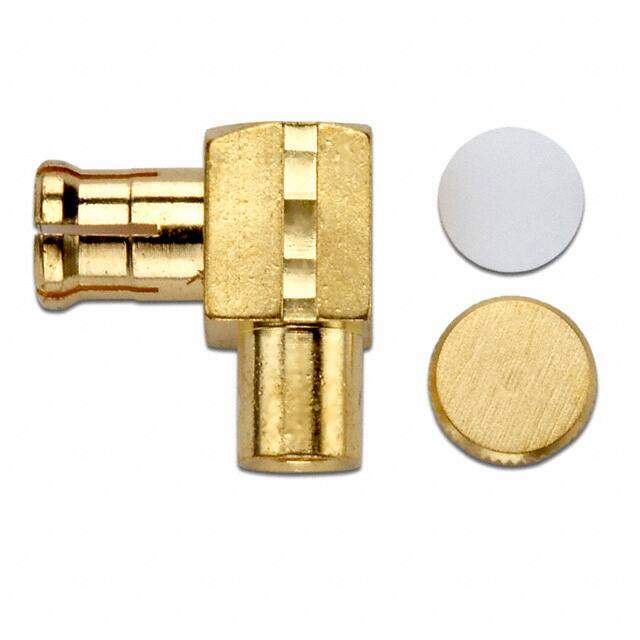

Includes 3 pcs - 1 Connector, 1 End Cap, 1 Insulator
Contact Termination Solder
Mating Cycles 500
Frequency (Max) 3GHz
Body Plating Gold
Number of Ports 1
Connector Style MCX
Impedance 50Ohm
Polarity Standard
Housing Color Gold
Frequency 3GHz
Orientation Right Angle
Fastening Type Snap-On
Voltage - Rated 170V
Min Operating Temperature -55°C
Max Operating Temperature 155°C
Connector Type Plug, Male Pin
Termination Solder
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Obsolete
Published 2008
Packaging Bulk
Operating Temperature -55°C~155°C

Physical

Center Contact Material Brass
Center Contact Plating Gold
Body Material Brass
Dielectric Material Polytetrafluoroethylene (PTFE)
Mounting Type Free Hanging (In-Line), Right Angle
Mount Cable, Free Hanging
Contact Plating Gold
Contact Material Brass
