72993
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description
Coaxial Connector
PDF
/
Inventory: 4304
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Contact Material Brass, Copper
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line), Right Angle
Insulation Material POLYTETRAFLUORO ETHYLENE
Dielectric Material Polytetrafluoroethylene (PTFE)
Body Material Brass
Center Contact Plating Gold
Center Contact Material Beryllium Copper
Technical
Operating Temperature -65°C~165°C
Packaging Bulk
Published 2008
JESD-609 Code e4
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) Not Applicable
ECCN Code EAR99
Connector Type Jack, Male Pin
Voltage - Rated 250V
Fastening Type Snap-On
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Option GENERAL PURPOSE
Orientation Straight
Frequency 1GHz
Contact Gender FEMALE
Polarity Standard
Impedance 75Ohm
Connector Style SMB
Number of Ports 1
Mating Cycles 500
Contact Termination Push On

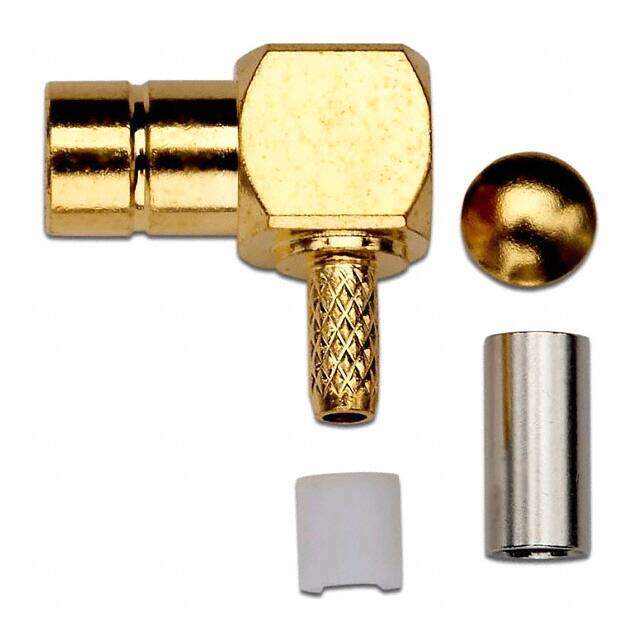

Includes 4 pcs - 1 Connector, 1 End Cap, 1 Ferrule, 1 Insulator
Cable Group RG-179, 187
VSWR 1.5
Shield Termination Crimp
Compliance
RoHS Status ROHS3 Compliant
